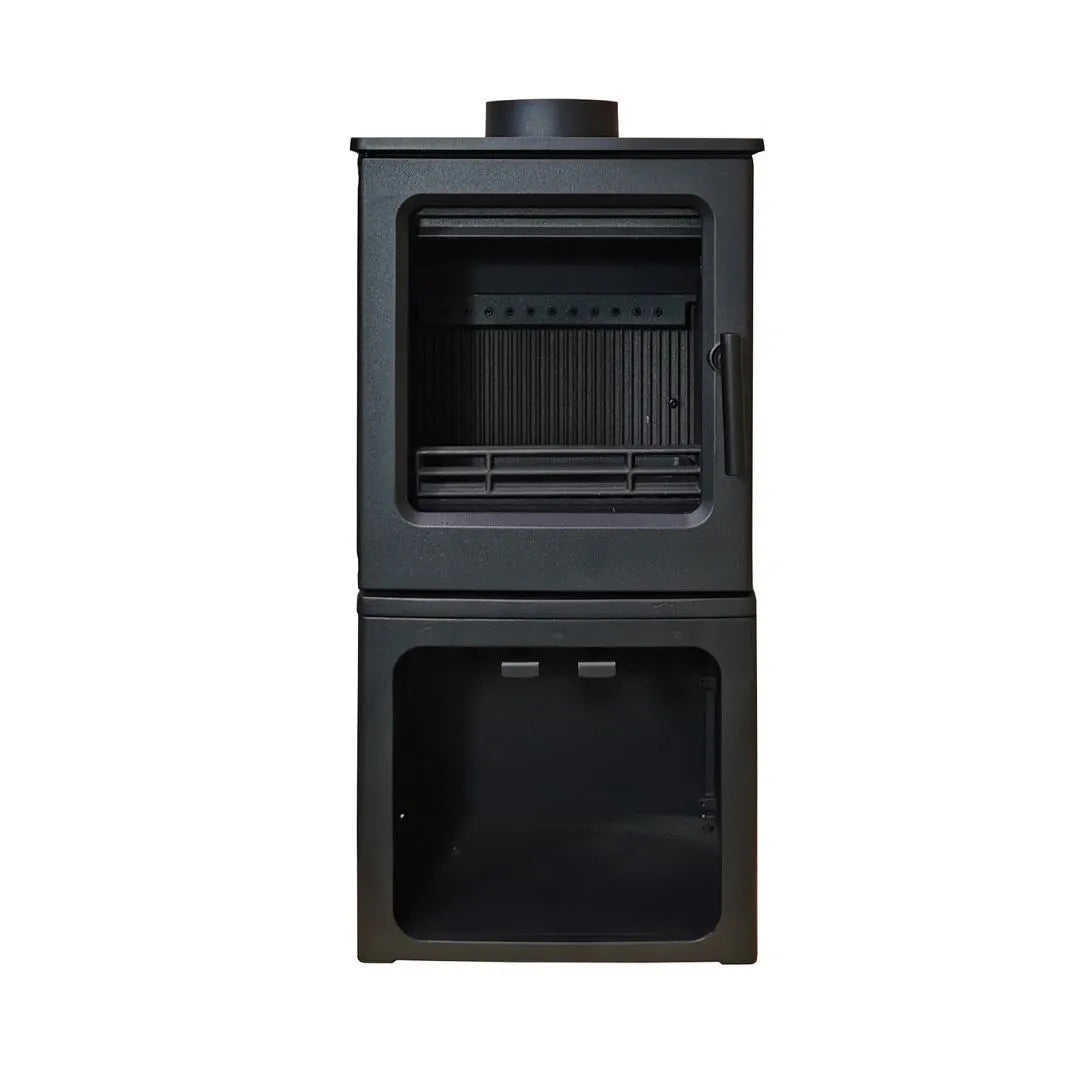

This Sheffield wood stove features a modern design with large glass door for stunning views of the fire & flames. Manufactured in full cast iron with impressive secondary/tertiary burn and twin baffle system, working in tandem to recycle the initial smoke produced by fire and continue to burn it off before it is expelled from the stove.
The Sheffield allows either top or rear flue outlets, and is equipped with a pre-heated air-wash system ensuring that warm air is rushing onto this glass, helping to keep it free of smoke stains.
Stove Features:
★2022 Eco Design Ready
★Defra Approved
★CE/UKCA Approved
★Distance to combustible materials at the rear (400mm)
★Distance to combustible materials at the side (400mm)
★Design and Tested in the UK – All tests carried out by KIWA Gastec in Cheltenham

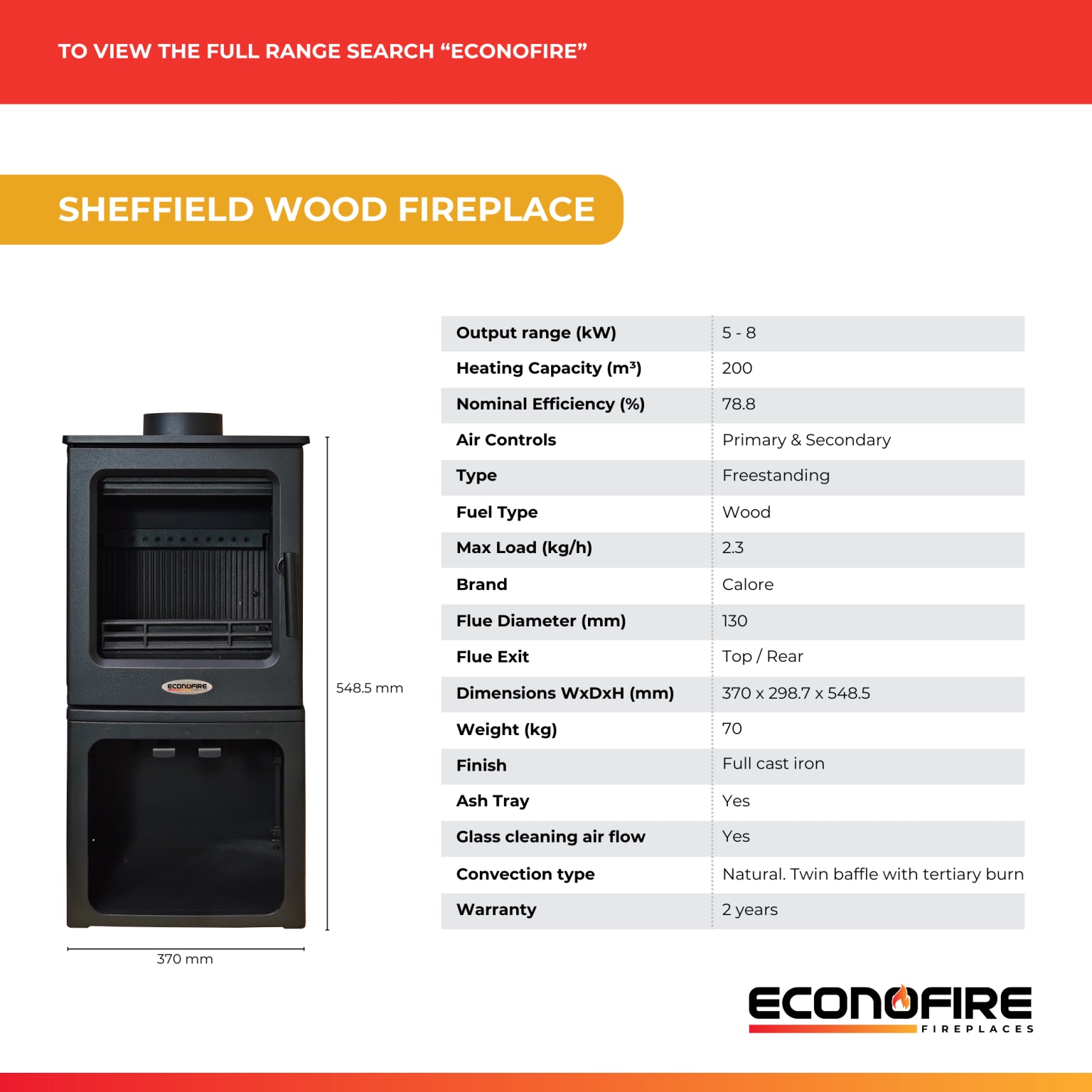

ADDITIONAL INFORMATION
| OUTPUT RANGE |
5 - 8 kW |
| NOMINAL EFFICIENCY |
78.8% |
| FUEL TYPE |
Drywood |
| CONSUMPTION |
2.3kg/hr |
| FLUE PIPE DIAMETER |
130mm |
| FLUE EXIT |
Top/Rear |
| MEASUREMENTS (WxDxH) |
390 x 310 x 770mm |
| WEIGHT |
70kg |
| FIREBOX |
Cast Iron |
| FINISH |
Full Cast Iron |
| ASH TRAY |
Yes |
| AIRWASH |
Yes |
| WARRANTY |
2 Year |
ADDITIONAL RESOURCES

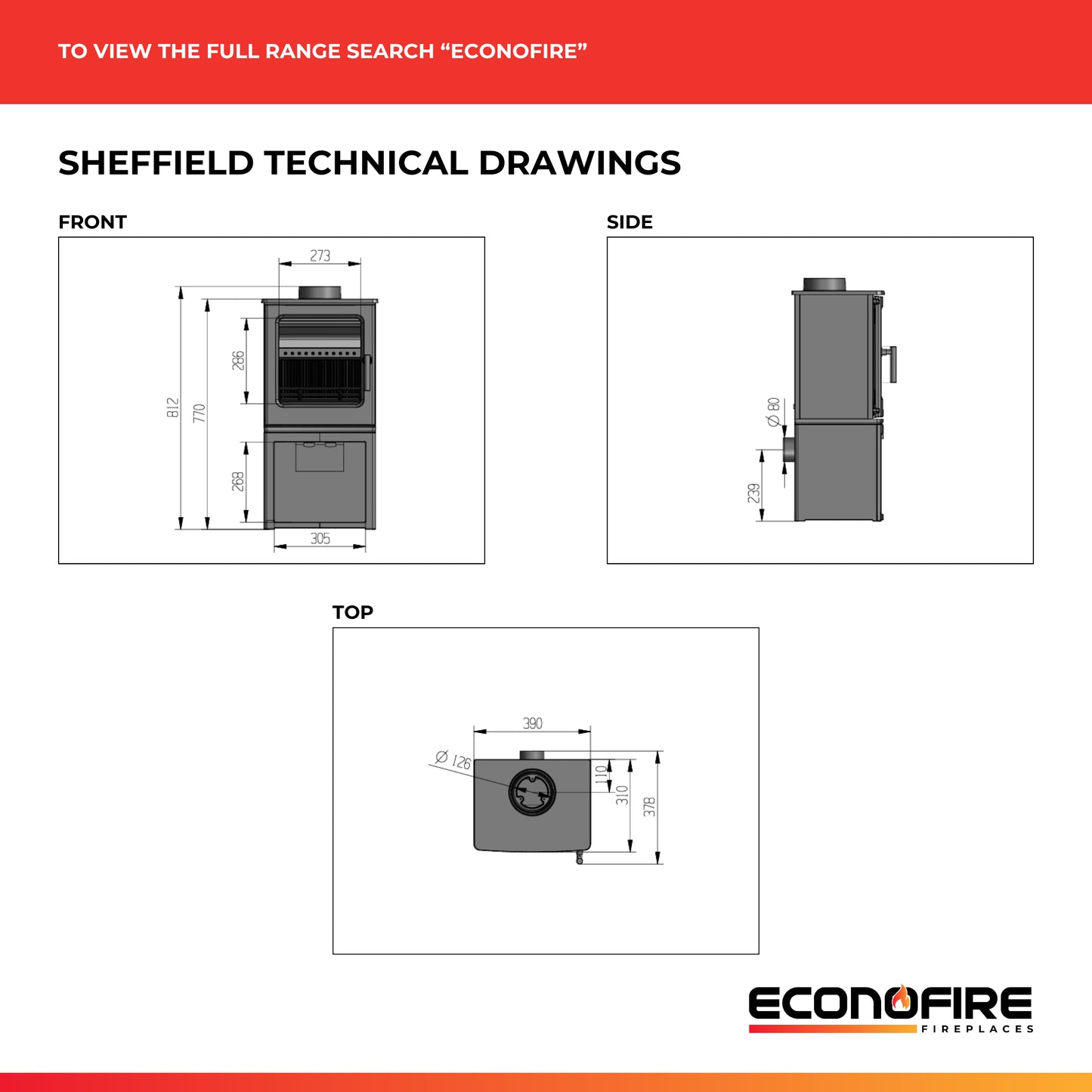

Download the Econofire Sheffield Wood Fireplace product data & technical drawing here.
Download the Econofire Sheffield Wood Fireplace product user manual here.
