Chad-O-Chef Drop-In 800 Fireplace

Indulge in the enduring allure of fire with the flueless drop-in gas fireplace. Gone are the days of chimneys and venting – enjoy the warmth and ambiance of a flickering flame with the convenience of clean-burning technology. Perfect for open-concept living spaces, this fireplace provides efficient and effortless warmth.

Different finishing options available for this fireplace:

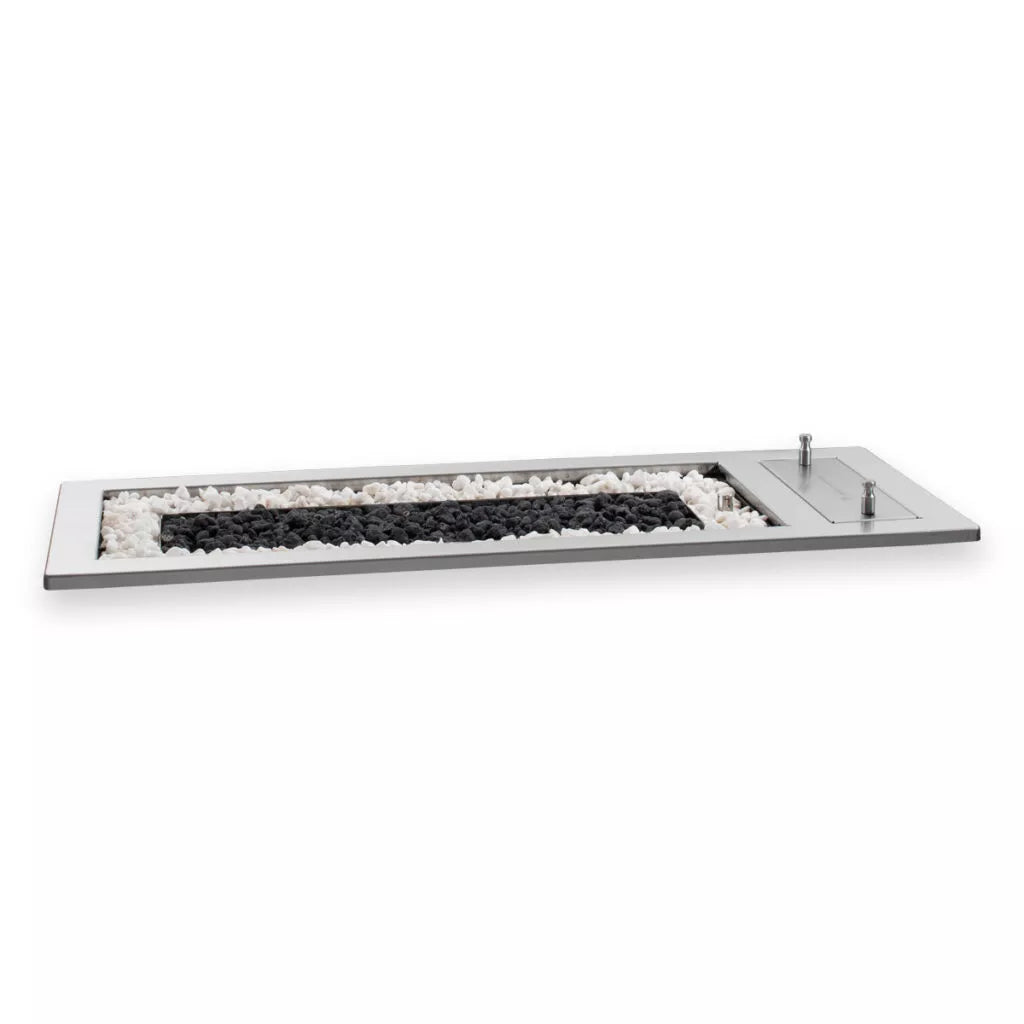

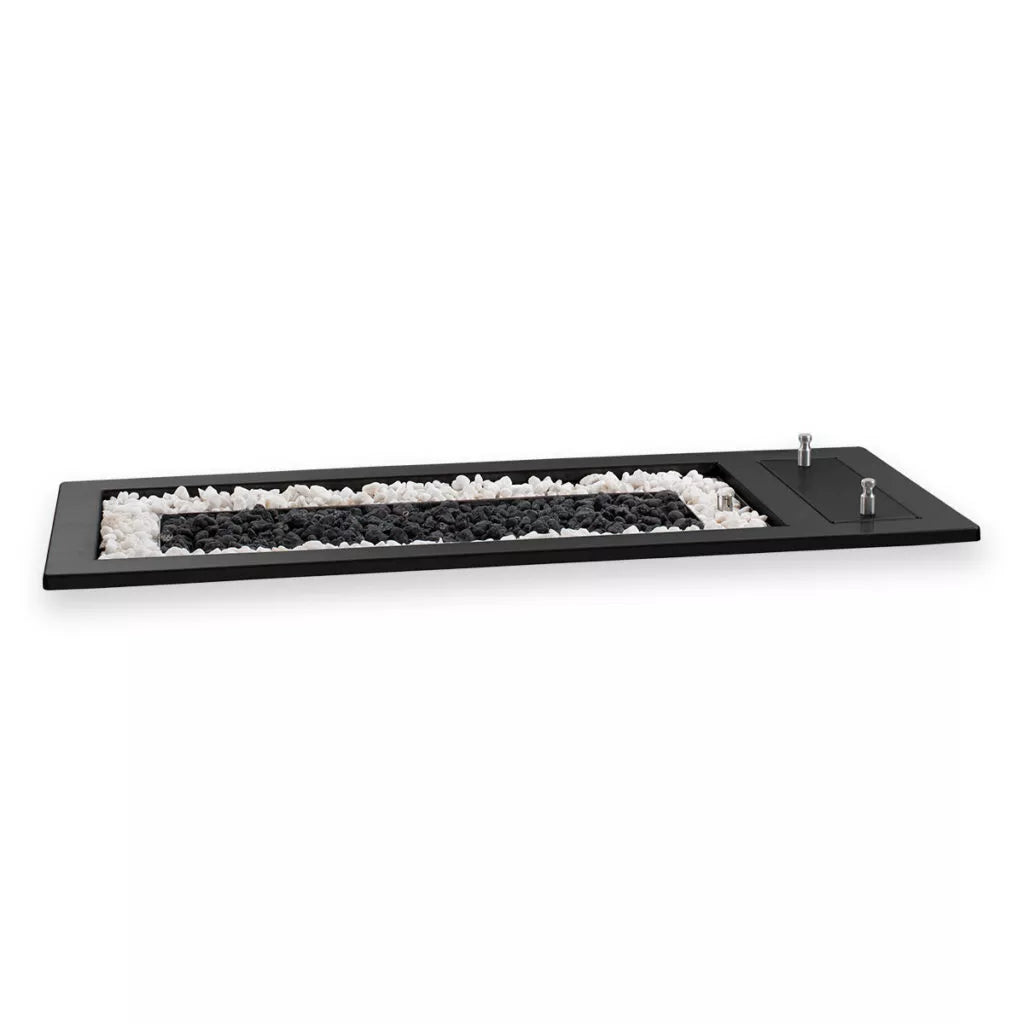

• Frame: Choose between the standard brushed stainless-steel frame or make a statement with a bold black mild steel frame.

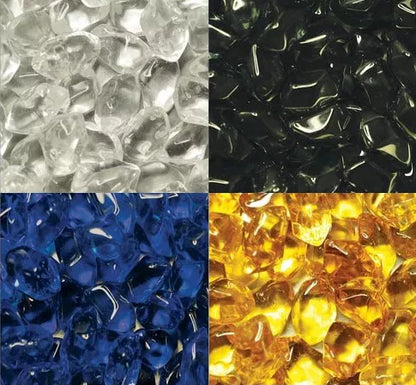

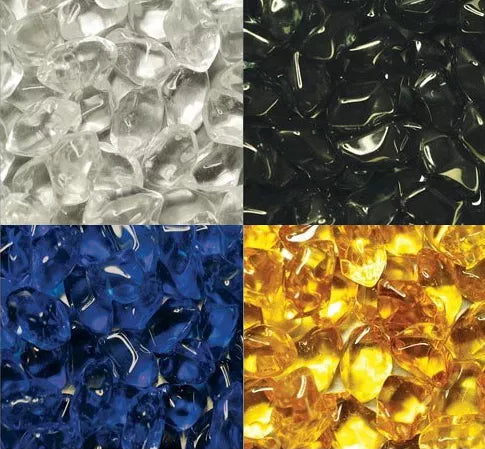

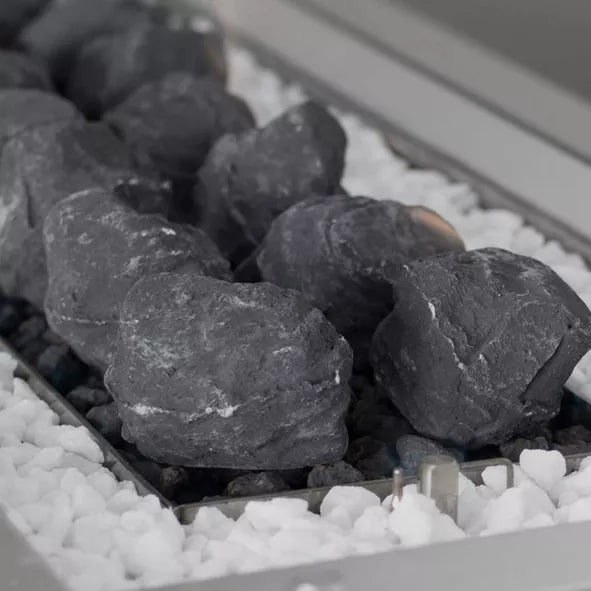

• Decorative Stones: Standard stone options include black ash in the burner, with a white stone surround. Large black coals and fire glass are also available as alternatives.

Key features of the Chad-O-Chef Drop-In 800 (VFDI800) Fireplace:

• Sleek and minimalist design.
• Easy to install – no need for extensive building work or chimneys.

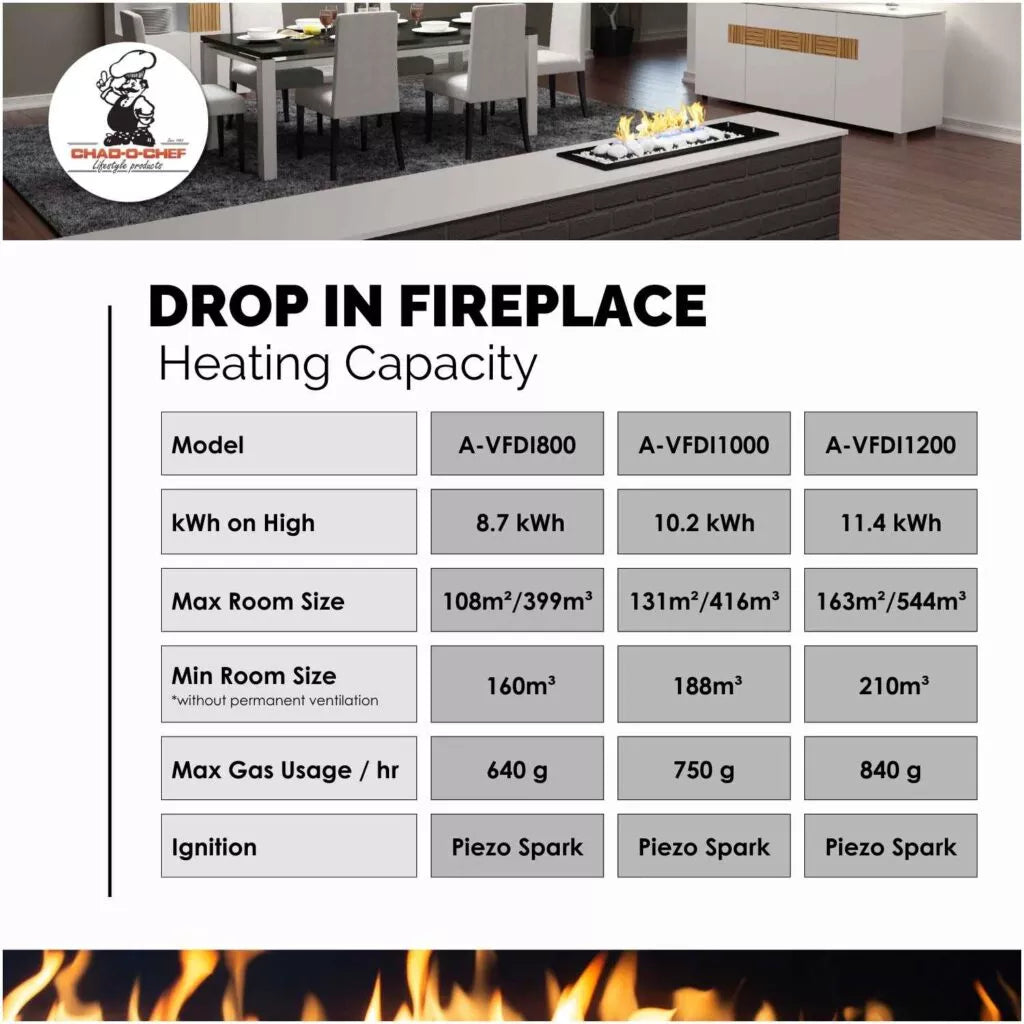

• Heats up indoor areas of up to 108m² or 399m³ (8.7 kW/h).
• Conservative Gas Consumption (when operating on max) is 0.64 kg/h.
• The minimum room size (without permanent ventilation) should not be less than 160m³.
• Made of high-quality stainless steel or Mild Steel (black), with heat-resistant coatings.
• Safety Guaranteed with ODS Safety System
• 2-Year quality guarantee.
• Low maintenance and easy to use.
• Requires a registered gas installer for installation.
• Ignites with a Piezo Spark
• Manufactured in a world-class factory, with ISO9001

Installation Instructions

The Drop-In Fireplace is designed to drop into a hole cut out of a surface (e.g., a kitchen work surface).
The hole in the surface needs to be made in a non-combustible material (e.g., cement), with the appropriate amount of cross-flowing ventilation available into the box housing the Drop-In Fireplace, as depicted below:

Note:
– Rooms smaller than the ‘Min. Room size’ requires suitable permanent ventilation.
– ‘Max. Room sizes’ are recommended and may vary according to factors such as home insulation, materials, climate, and so forth.

What’s in the box?

• Fireplace
• Burner
• Decorative Stones
• Instruction Manual

ADDITIONAL INFORMATION

ASSEMBLED SIZE	780mm x 300mm x 150mm
GAS TYPE	LPG, Natural Gas
HEATING CAPACITY (MAX)	8.7kW (399m³ / 108m²)
MINIMUM ROOM SIZE (without permanent ventilation)	160m³
GAS CONSUMPTION (MAX)	0.64kg/hr
IGNITION TYPE	Piezo Ignitor
BURNER FINISHING OPTIONS	Black Ash (Standard), Black Coals, Glass Stones
FASCIA OPTIONS	Stainless Steel, Black (Matt)
