Chad-O-Chef Double Sided 1000 Fireplace

Heat up large open spaces going up to 416mᶟ in style with this indoor flueless gas fireplace. The Double-Sided Fireplace is ideal for heating up open plan areas, or a space in the home where a dividing wall separates two areas.

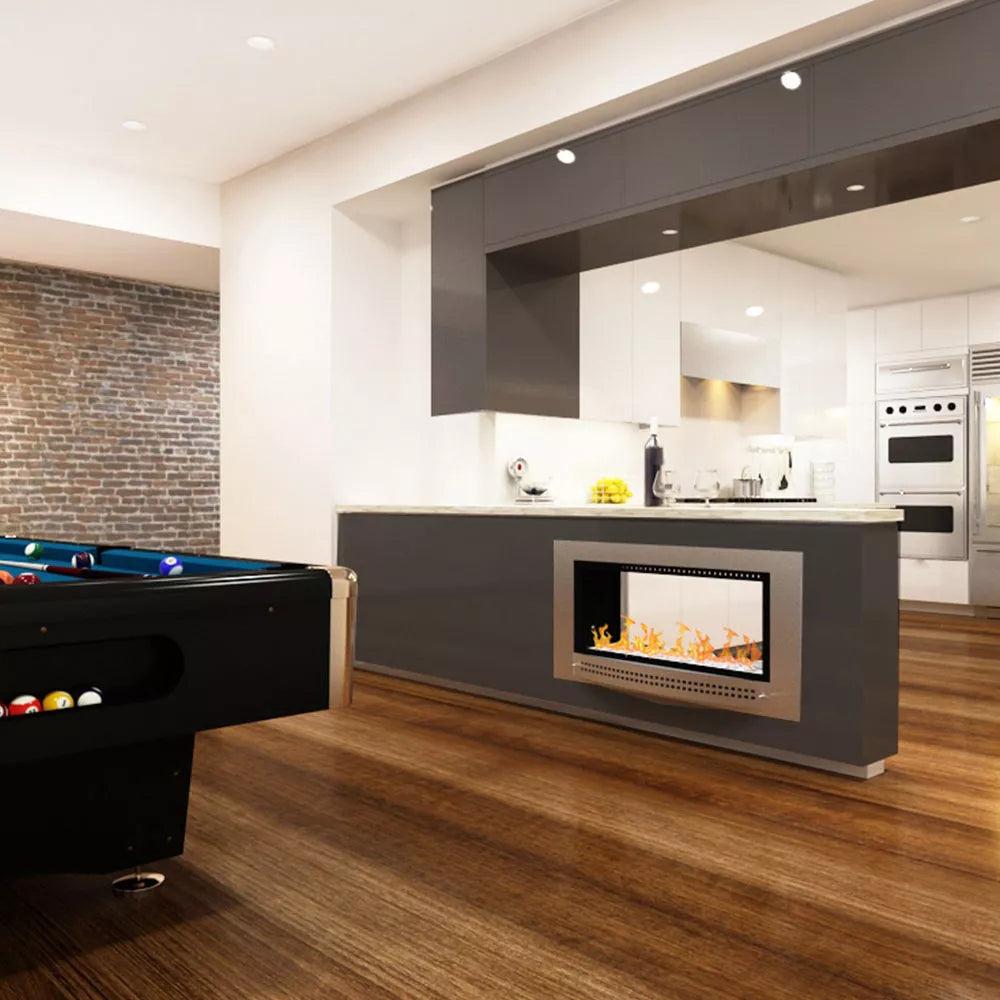

Create a stunning focal point that not only brings warmth to two rooms but also fosters a sense of connection and shared space – our Double-Sided indoor flueless gas fireplace makes this vision a reality. Perfect for open floor plans or dividing large spaces.

Different finishing options available for this fireplace:

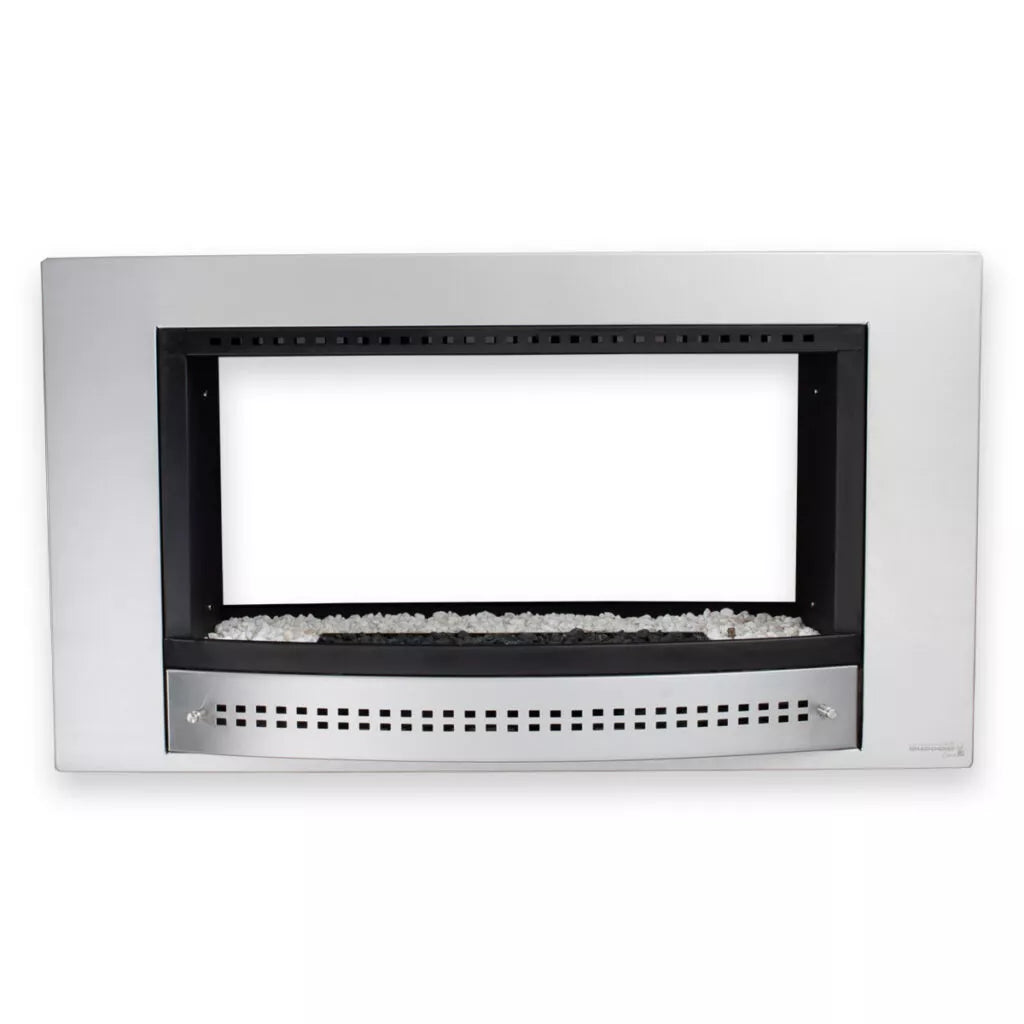

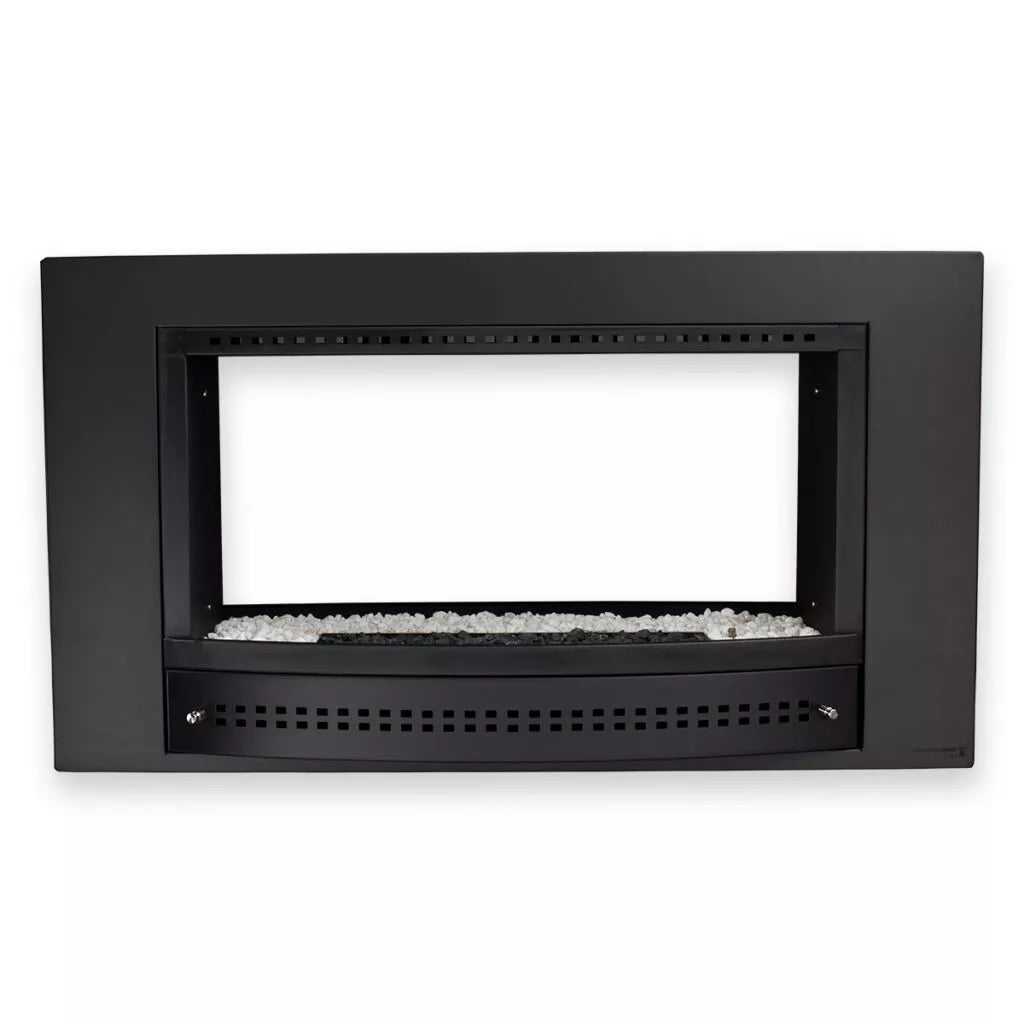

• Frame: Choose between the standard brushed stainless-steel frame or make a statement with a bold black mild steel frame.

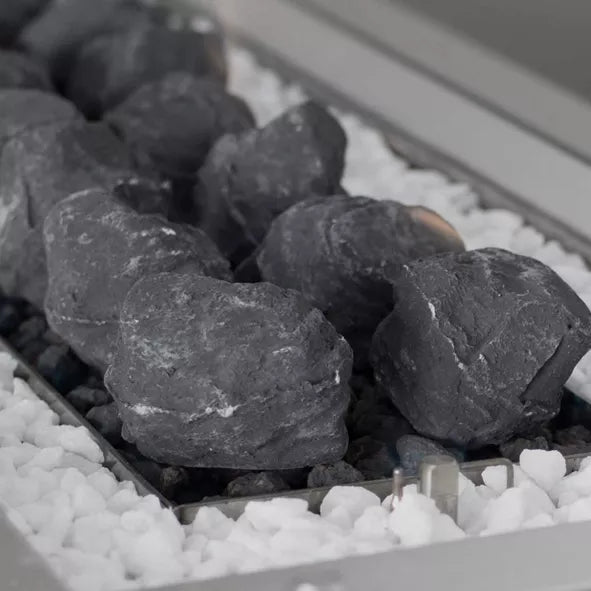

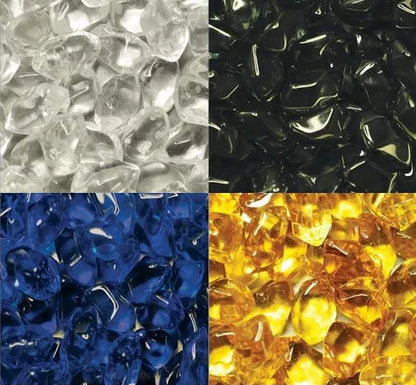

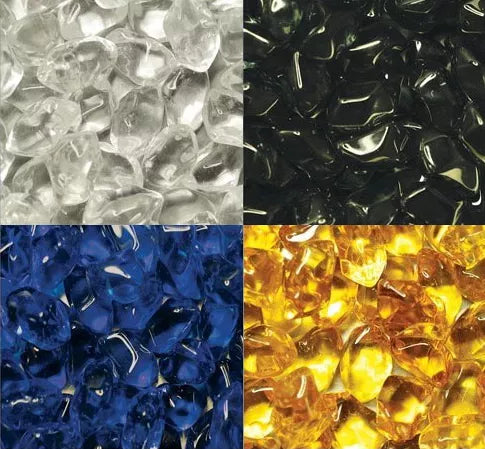

• Decorative Stones: Standard stone options include black ash in the burner, with a white stone surround. Large black coals and fire glass are also available as alternatives.

Key features of the Chad-O-Chef Double Sided 1000 (VFDS1000) Fireplace:

• Heats up indoor areas of up to 131m² or 416m³ (10.2 kWh).
• Conservative Gas Consumption (when operating on max) is 0.75 kg/h.
• The minimum room size (without permanent ventilation) should not be less than 188m³.
• Made of high-quality stainless steel and Mild Steel (black), with heat-resistant coatings.
• Safety Guaranteed with ODS Safety System
• 2-Year quality guarantee.
• Low maintenance and easy to use.
• Requires a registered gas installer for installation.
• Ignites with a Piezo Spark
• Manufactured in a world-class factory, with ISO9001

Installation Instructions

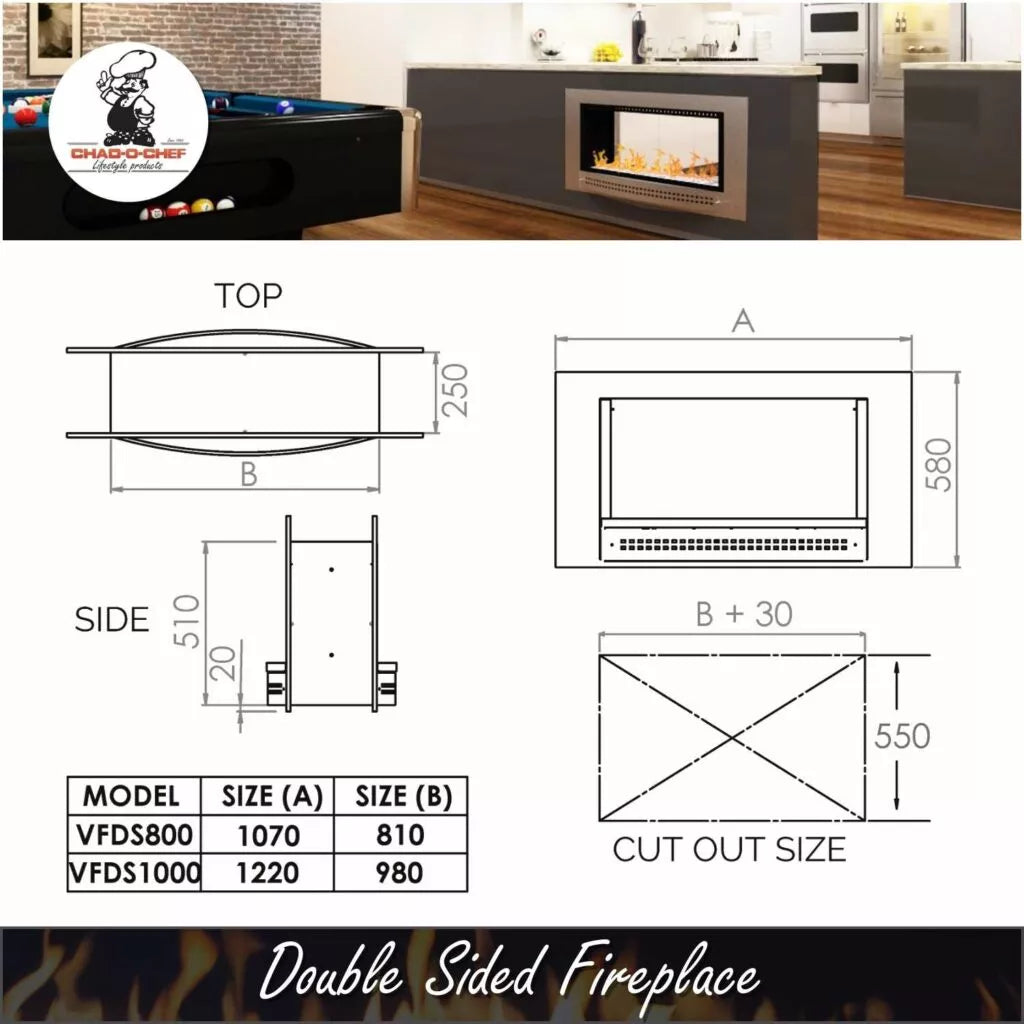

The Double Sided Fireplace is designed to fit through a cut-out in a double brick wall and has clearance for +-10mm of screeding on either side of the wall. The aperture in the wall needs the support of two load-bearing lintels above the Double-Sided fireplace before it can be installed.

Note:
– Rooms smaller than the ‘Min. Room size’ require suitable permanent ventilation.
– ‘Max. Room sizes’ are recommended and may vary according to factors such as home insulation, materials, climate, and so forth.

What’s in the box?

• Fireplace
• Burner
• Decorative Stones
• Instruction Manual

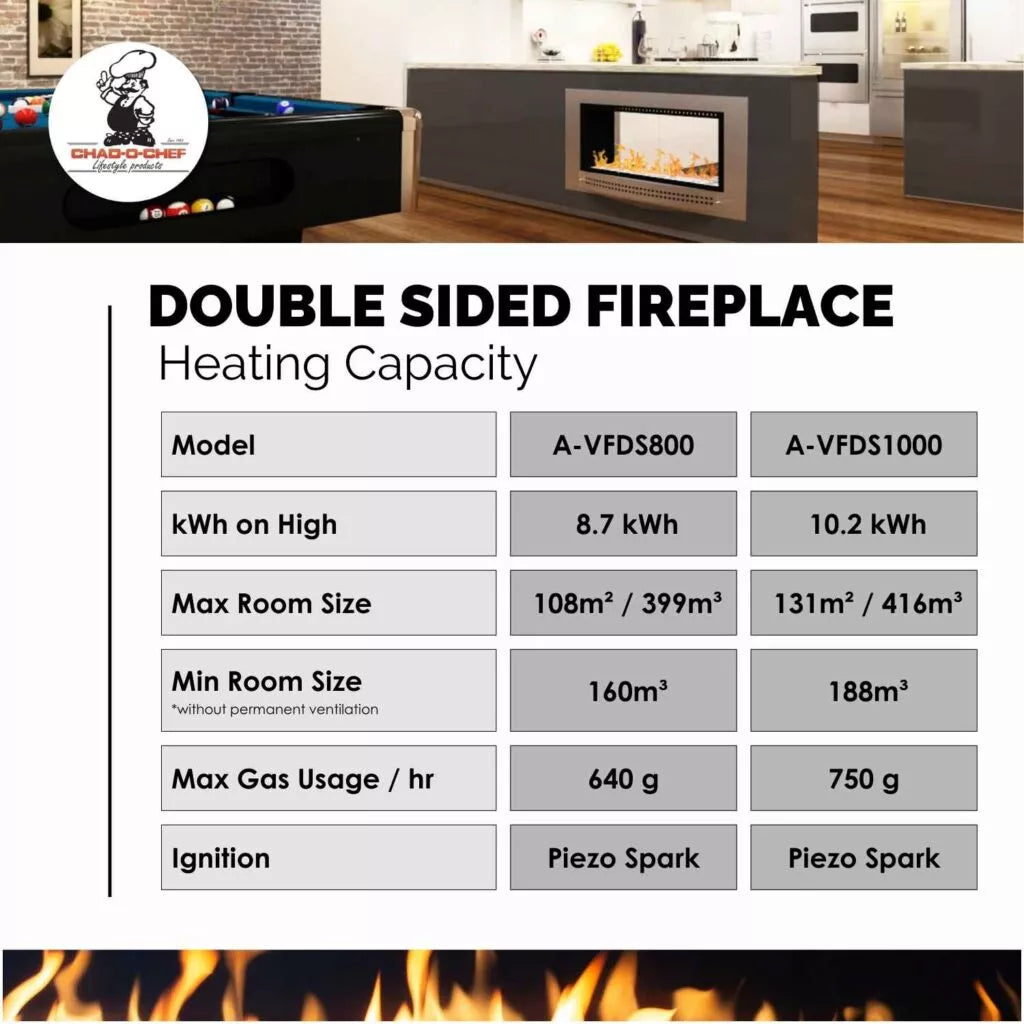

ADDITIONAL INFORMATION

ASSEMBLED SIZE	1220m x 600mm x 250mm
GAS TYPE	LPG, Natural Gas
HEATING CAPACITY (MAX)	10.2kW (416m³ / 131m²)
MINIMUM ROOM SIZE (without permanent ventilation)	188m³
GAS CONSUMPTION (MAX)	0.75kg/hr
IGNITION TYPE	Piezo Ignitor
BURNER FINISHING OPTIONS	Black Ash (Standard), Black Coals, Glass Stones
FASCIA OPTIONS	Stainless Steel, Black (Matt)
