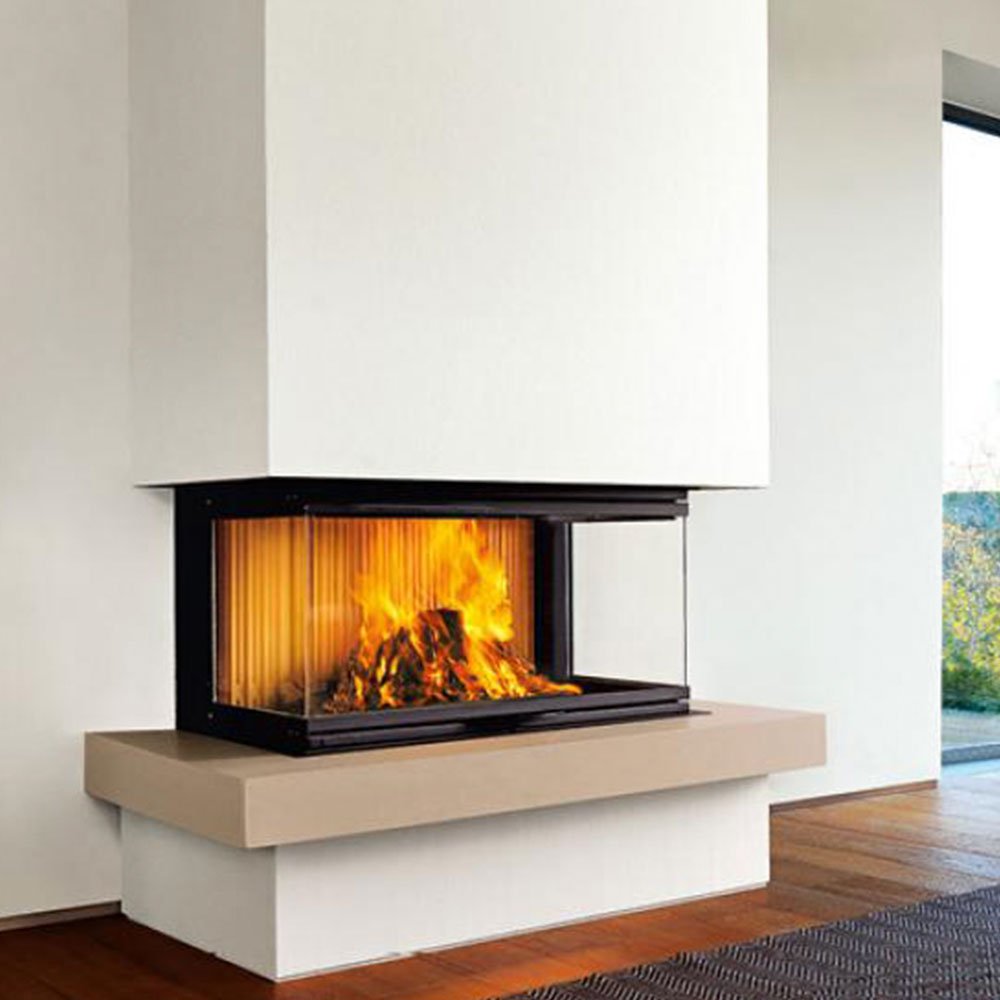

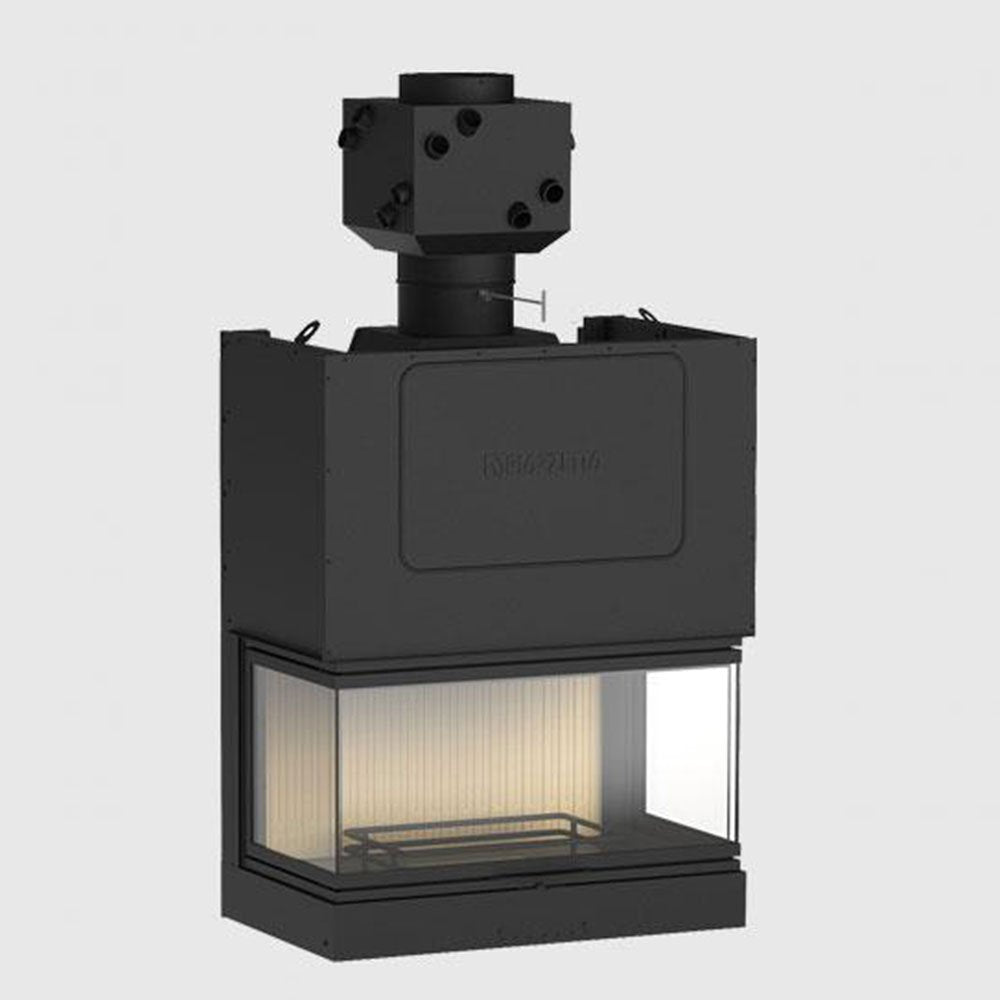

The Piazzetta MA 271 SL Plus Wood Fireplace is an elegant and high-performing unit, and the latest technology in built-in fireplaces from Piazzetta in Italy.

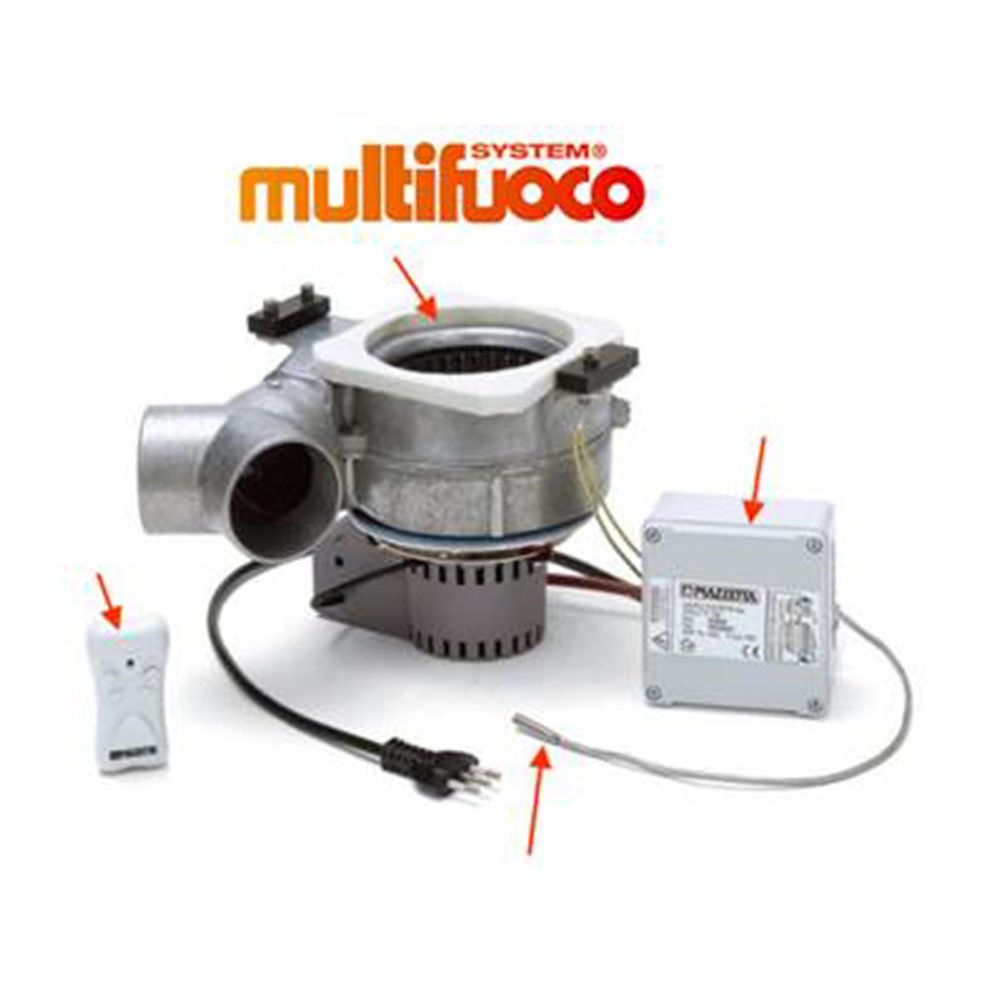

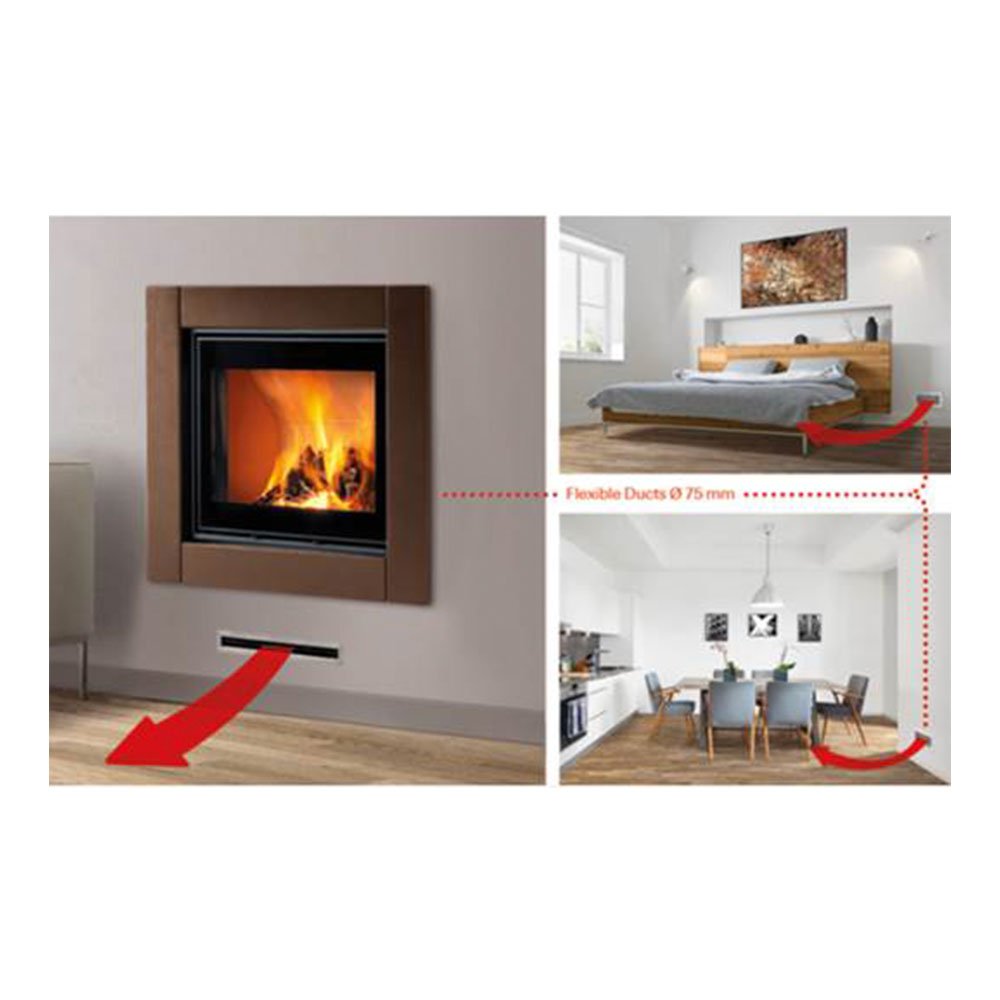

With its 3 sided glass and modern design, it is a perfect addition to most spaces. The fireplace features Aluker interior and optional Multifire enabling forced ventilation as well as ducting up to 10m. Its nominal efficiency of 78.3% and nominal output of 13 kW ensures that it will effectively heat rooms up to 343 m3.

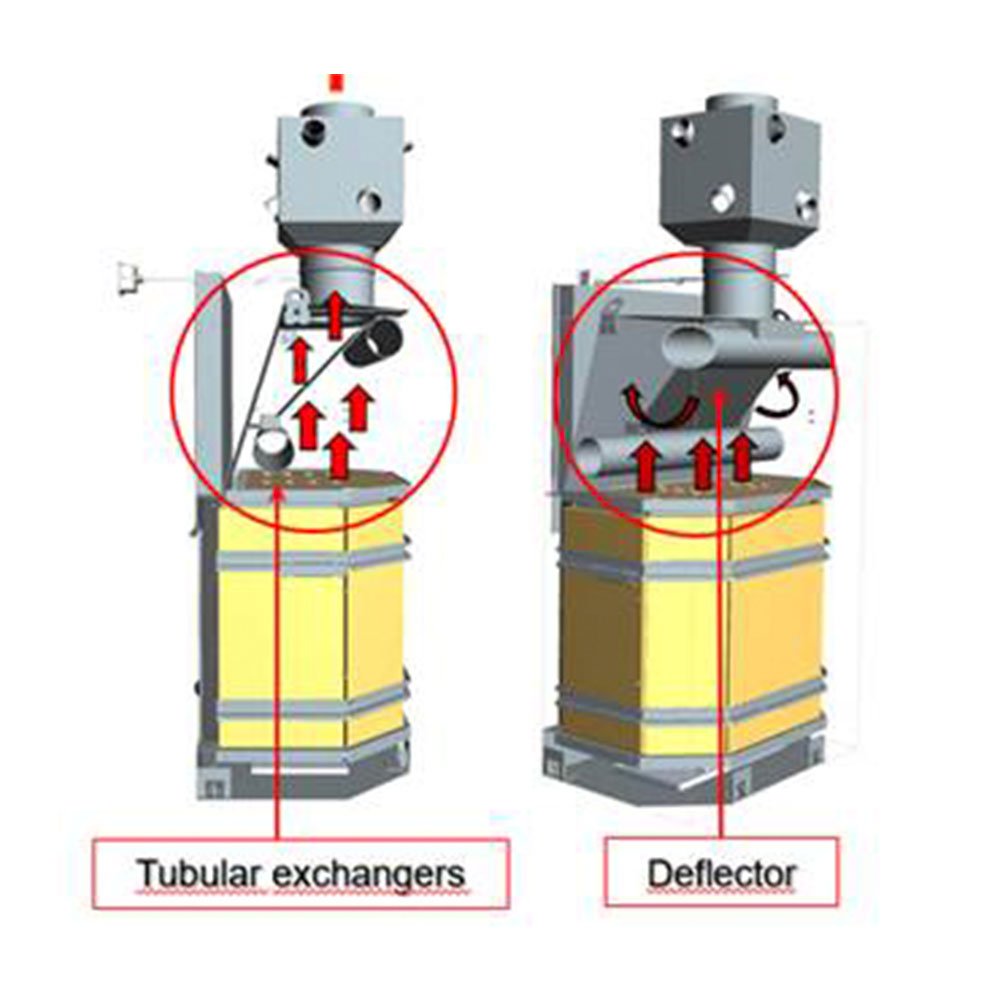

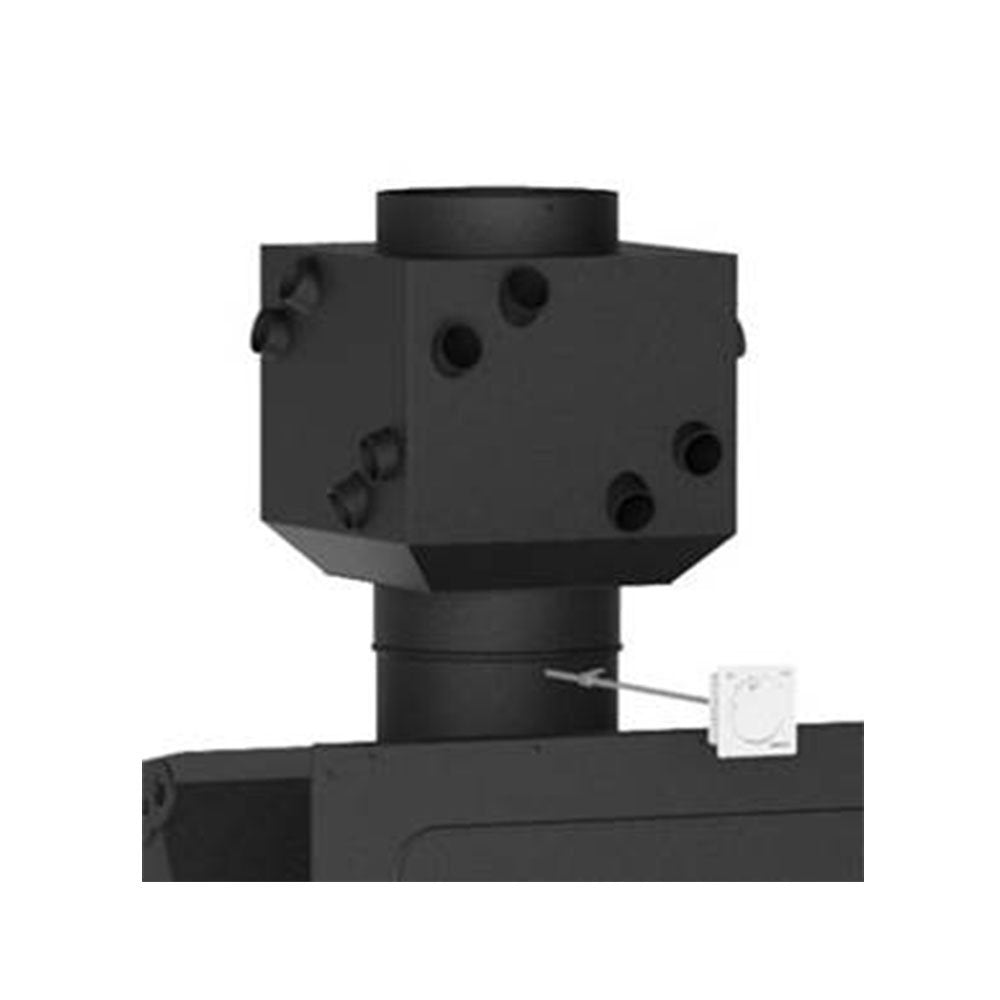

The smoke exchanger, two tubular exchangers and the deflector inside the firebox improve power and efficiency with a significant decrease in fuel consumption.
| Firebox Material | Steel |
| Internal Firebox Material | Steel & Aluker |
| Dimensions (mm) | H1820 x W972 x D535 |
| Nominal Heating Capacity (Cubic meters) | 460 |
| Nominal Output Range (kW) | 16 |
| Nominal Efficiency (%) | 77,5 |
| Nominal Fuel Consumption (kg/h) | 5,2 |
| Convection Type | Natural – Optional Forced |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 302 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
| Warranty – Parts Availability | 10 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Available Colours |
Black |
| Brand |
Piazzetta |
| Clean Glass Airflow |
Yes |
| Ductable |
Up to 10m |
| Finish |
Steel, Aluker |
| Flue Diameter (mm) |
250 |
| Flue Exit |
Top |
| Multifire |
With Multifire + Mantle Kit, Without Multifire |
| Nominal Efficiency (%) |
78.3 |
| Nominal Output (Kw) |
16 |
| Room heating capacity (m3) |
343 |
| Fuel |
Wood Burning |
DATA SHEET:
To download the Calore Piazzetta MA 271 SL Plus Wood Fireplace Data Sheet click here.
