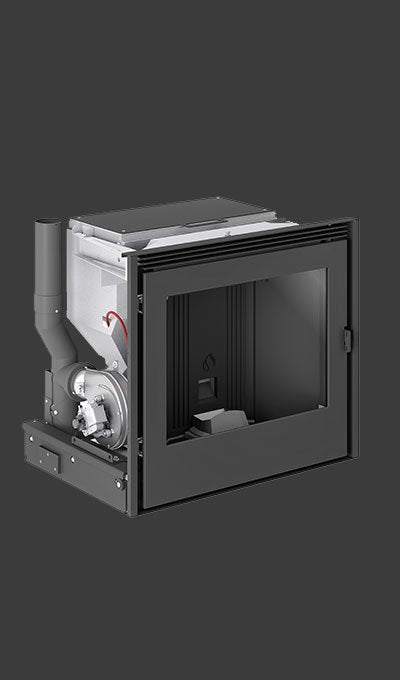

Calore Piazzetta IP 11 Pellet Fireplace
Calore Piazzetta IP 11 Pellet Fireplace
Description
Description
The Piazzetta IP 11 INSERT pellet fireplace is a great heating solution for any home. These sleek and modern pellet fireplaces feature steel and cast-iron finish fireboxes and are designed to slide out on robust rails for maintenance. The front-loading drawer system allows for topping up of pellets during operation by means of a slide out drawer system. Control of the unit is managed by a wall mounted LCD control panel mounted on the wall near the unit and linked to the fireplace by a 5m cable.
With a nominal output of 11 kW, it can efficiently heat a room of up to 315 cubic meters. It has a 22 kg hopper capacity, which can burn for several hours before requiring a refill. The fireplace also has six power levels and an energy-saving mode, allowing for customised heating options and energy efficiency.
| Firebox Material | Steel |
| Internal Firebox Material | Cast iron |
| Dimensions (mm) | H680 x W780 x D550 |
| Heating Capacity (Cubic meters) | 315 |
| Min to Nom Output Range (kW) | 4,6 – 11 |
| Nominal Efficiency (%) | 87,7 |
| Fuel Load / Consumption (kg/h) | 0,8 – 2,6 |
| Hopper Capacity (kg) | 22 |
| Running Time – Full Hopper (hrs) | 8 – 27 |
| Power Consumption (W) at Startup | 410 |
| Power Consumption (W) in Operation | 65-95 |
| Distance from flammable materials (mm) | Sides: N/A / Front: 1000 |
| Product Weight (kg) | 150 |
| Wi-Fi & Bluetooth | Optional |
| Remote Control | Wall mounted control panel |
| Warranty – Structural | 5 Years |
| Warranty – Electrical | 2 Years |
| Warranty – Parts Availability | 10 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Available Colours |
Black |
| Brand |
Piazzetta |
| Clean Glass Airflow |
Yes |
| Convection Type |
Forced |
| Energy Saving Mode |
Yes |
| Finish |
Steel, Cast Iron |
| Flue Diameter (mm) |
80/100 |
| Flue Exit |
Top |
| Hopper Capacity |
22 |
| Nominal Efficiency (%) |
87.7 |
| Nominal Output (Kw) |
11 |
| Kw Output |
4.6- 11 |
| Power Levels |
6 |
| Room heating capacity (m3) |
315 |
| Smart Class |
Smart Standard Fireplaces |
| Unit Dimensions (WxDxH) |
780 x 550 x 680 |
| Weight (Kg) |
150 |
| Fuel |
Pellet Burning |
DATA SHEET:
To download the Calore Piazzetta IP 11 Pellet Fireplace Data Sheet click here.
