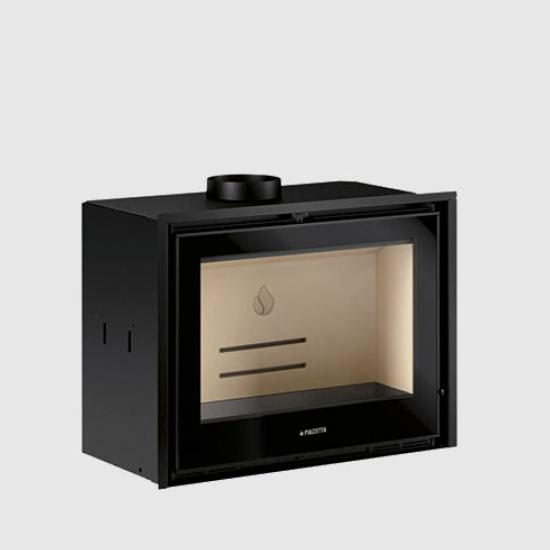

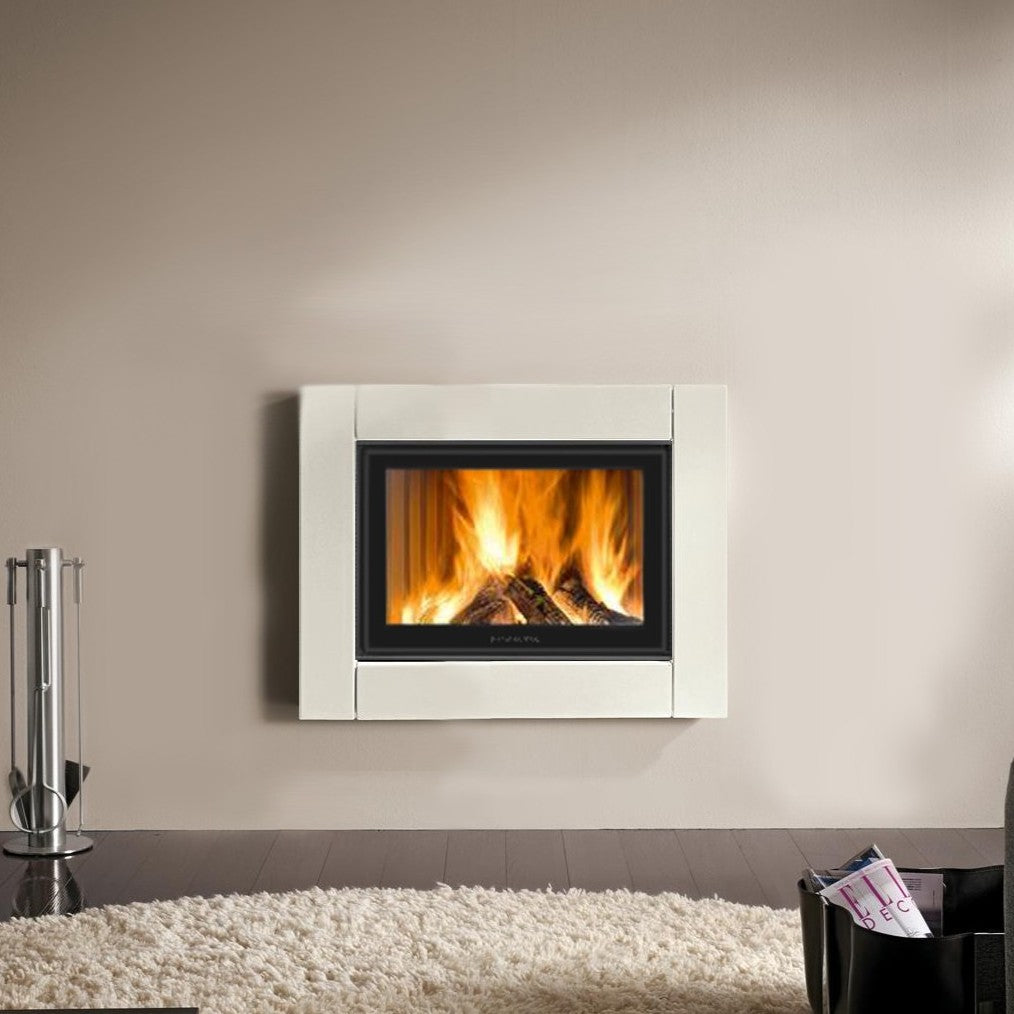

Calore Piazzetta IL75/64 Wood Fireplace
Calore Piazzetta IL75/64 Wood Fireplace
Description
Description
The Piazzetta IL75/64 Wood Fireplace is a beautiful and efficient heating solution for your home. The forced convection type ensures that heat is distributed evenly throughout the room, while the ash tray makes for easy cleaning. The cast-iron and Aluker cladded internal finish provides durability and style
It has a nominal efficiency rating of 79.7%, ensuring that you get the most heat possible from your wood fuel. The unit also has a nominal output of 9 kW and can heat rooms up to 260 m3. At 750 x 425 x 640 mm, it is a compact unit insert fireplace that is perfect for small to medium-sized rooms.
| Firebox Material | Steel |
| Internal Firebox Material | Cast-Iron & Aluker |
| Dimensions (mm) | H640 x W750 x D425 |
| Heating Capacity (Cubic meters) | 260 |
| Min to Nom Output Range (kW) | 4,3 – 9 |
| Nominal Efficiency (%) | 79,7 |
| Nominal Fuel Consumption (kg/h) | 2,4 |
| Convection Type | Natural – Fan Assisted |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 132 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
| Warranty – Parts Availability | 10 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Brand |
Piazzetta |
| Clean Glass Airflow |
Yes |
| Convection Type |
Forced |
| Finish |
Steel, Aluker |
| Flue Diameter (mm) |
180 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
79.7 |
| Nominal Output (Kw) |
9 |
| Kw Output |
4.3-9 |
| Room heating capacity (m3) |
260 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
750 x 425 x 640 |
| Weight (Kg) |
132 |
| Fuel |
Wood Burning |
DATA SHEET:
To download the Calore Piazzetta IL75/64 Wood Fireplace Data Sheet click here.
