Calore Piazzetta IL65/54 Wood Fireplace
Calore Piazzetta IL65/54 Wood Fireplace
Description
Description

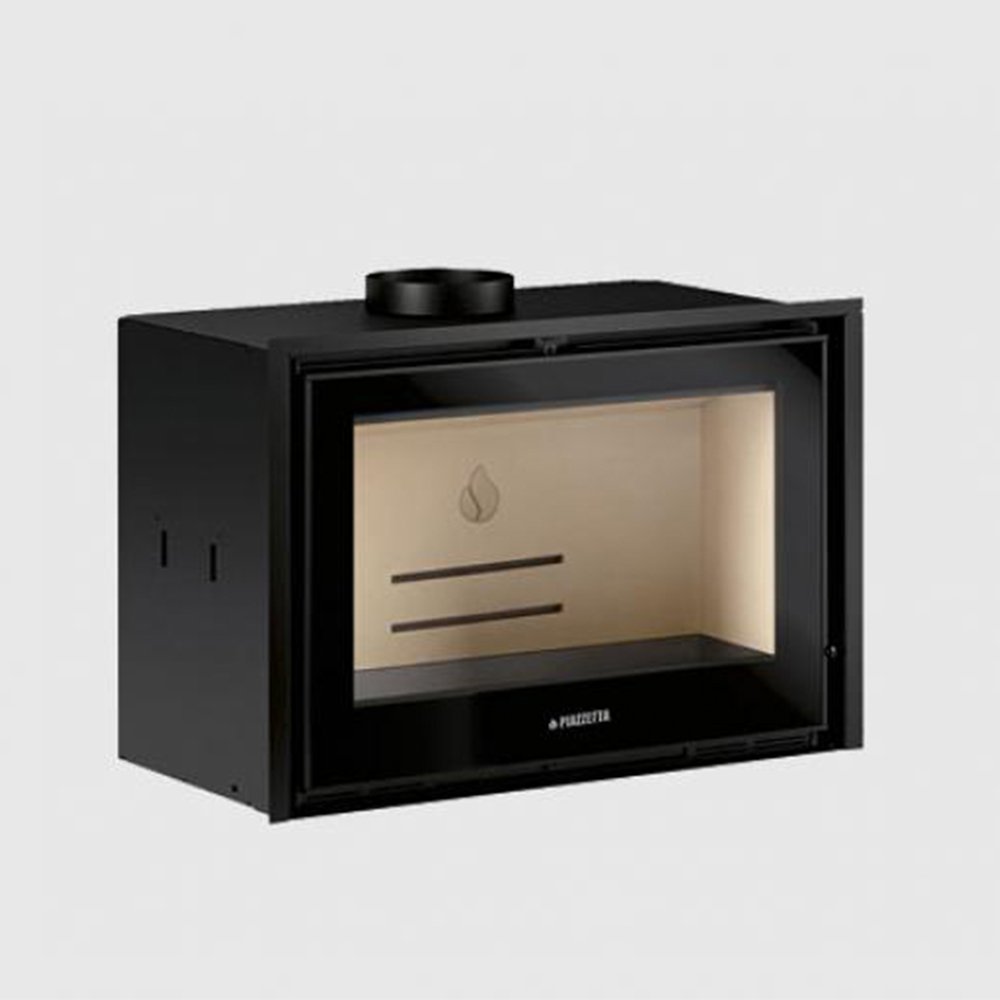

The Piazzetta IL65/54 insert Wood Fireplace offers a sleek and modern design, perfect for any contemporary home. With a forced convection system, this fireplace can quickly and efficiently heat a room up to 200m³.
The ash tray and clean glass airflow make for easy cleaning, while the cast-iron and Aluker cladded internal finish provides durability and style. The fireplace has a nominal output of 7 kW, with a range of 3.3-7 kW, and a nominal efficiency of 78.1%. Its compact unit dimensions of 650 x 425 x 540 and weight of 110 kg make installation a breeze.
As with all Piazzetta products, this wood fireplace is manufactured with the highest standards of safety and quality.
| Firebox Material | Steel |
| Internal Firebox Material | Cast-Iron & Aluker |
| Dimensions (mm) | H540 x W650 x D425 |
| Heating Capacity (Cubic meters) | 200 |
| Min to Nom Output Range (kW) | 3,3 – 7 |
| Nominal Efficiency (%) | 78,1 |
| Nominal Fuel Consumption (kg/h) | 2 |
| Convection Type | Natural – Fan Assisted |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 110 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
| Warranty – Parts Availability | 10 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Available Colours |
Black |
| Brand |
Piazzetta |
| Clean Glass Airflow |
Yes |
| Convection Type |
Forced |
| Finish |
Steel, Aluker |
| Flue Diameter (mm) |
150 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
78.1 |
| Nominal Output (Kw) |
7 |
| Kw Output |
3.3- 7 |
| Room heating capacity (m3) |
200 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
650 x 425 x 540 |
| Weight (Kg) |
110 |
| Fuel |
Wood Burning |
DATA SHEET:
To download the Calore Piazzetta IL65/54 Wood Fireplace Data Sheet click here.
