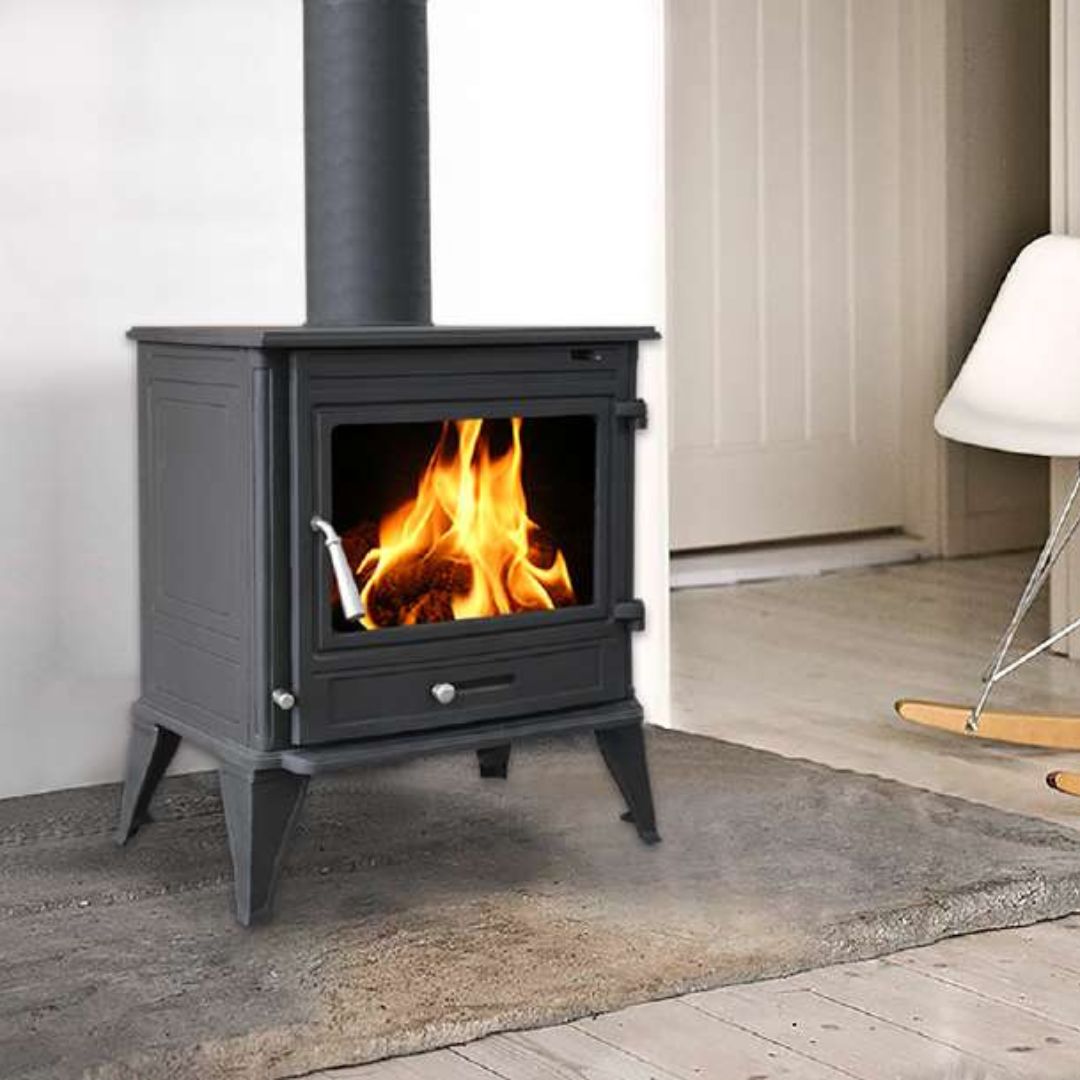

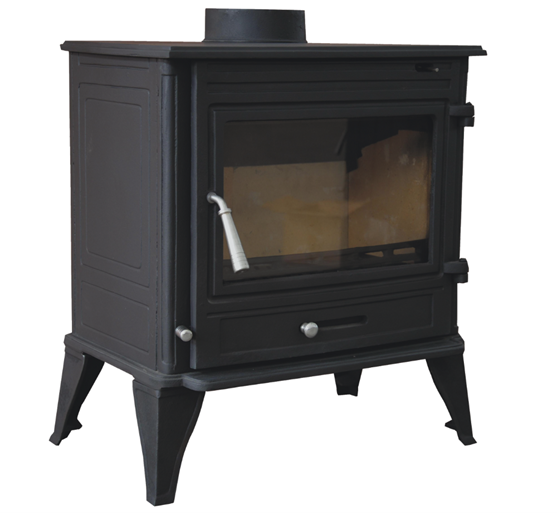

Calore Metlor Braga D10 Fireplace
Calore Metlor Braga D10 Fireplace
Description
Description
The Braga D10 features classic styling with modern technology. The full cast iron structure is lined with vermiculite for improved efficiency, but also construction. The maximum output of 11kW makes it capable of heating rooms of up to 100m² when well insulated and with standard ceiling heights.
Combustion is extremely efficient and adjusted via primary, secondary as well as tertiary controls resulting is a clean burn and maximum usage of the fuel.
The Braga D10 also features a large removable ash pan with a heat resistant glove and separate handle for use when the pan is hot.
Flue exit can be either from the top or the rear of the Fireplaces making the Braga D10 extremely versatile.
| Firebox Material | Cast Iron |
| Internal Firebox Material | Cast Iron |
| Dimensions (mm) | H722 x W616 x D394 |
| Heating Capacity (Cubic meters) | 215 |
| Nom – Max Output Range (kW) | 10 – 12.8 |
| Nominal Efficiency (%) | 78.3 |
| Nominal Fuel Consumption (kg/h) | 2.9 |
| Convection Type | Natural |
| Ash Tray | Yes |
| Product Weight (kg) | 133 |
| Glass Cleaning Air Flow | Yes |
| Warranty – Structural | 3 Years |
Price excludes installation, flues and consumables.
| Finish |
Cast-Iron, Glass |
|---|---|
| Flue Diameter (mm) |
150 |
| Flue Exit |
Top, Rear |
| Nominal Efficiency (%) |
78.3 |
| Kw Output |
10 – 12.8 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
722 x 616 x 394 |
| Weight (Kg) |
133 |
| Fuel |
Wood Burning |
| Body |
Cast Iron |
| Brand |
Metlor |
DATA SHEET:
To download the Calore Metlor Braga D10 Fireplace Data Sheet click here.
