Calore
Calore C&A Chama Modular Cristal 78 D Wood Fireplace
Calore C&A Chama Modular Cristal 78 D Wood Fireplace
Description
Description

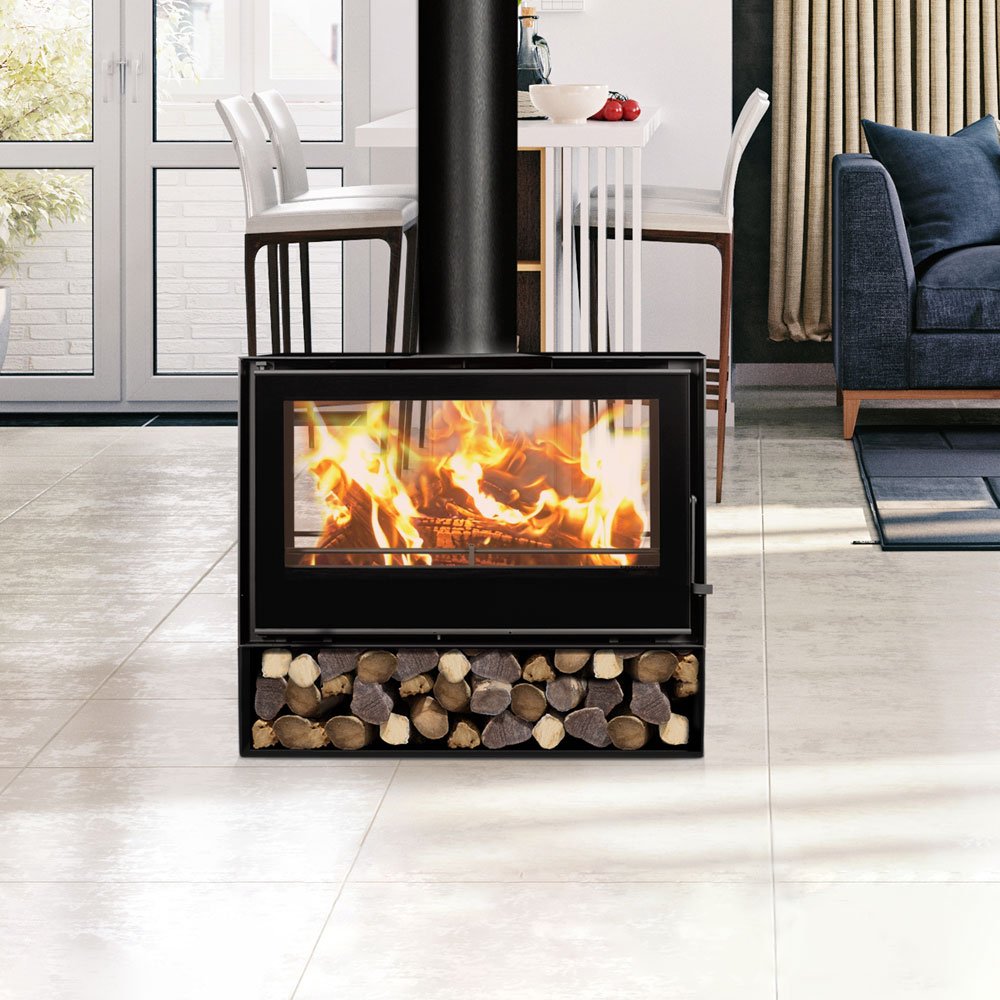

Looking for a sleek, modern fireplace to act as a room divider with stunning views of the fire from both sides? Look no further than the C&A Chama Modular Cristal 78 double-sided Wood Fireplace.With a nominal efficiency of 81% and a maximum output of 14.3kW, this fireplace packs a powerful punch, providing plenty of warmth for any room. Plus, with the added convenience of an ash tray and clean glass airflow, maintenance is a breeze.It features a range of modular configurations including no base, a four-feet base, an extended bench, a pedestal, or a wood log holder. Optional accessories like a ventilation kit are also available.
| Firebox Material | Steel |
| Internal Firebox Material | Steel & vermiculite |
| Dimensions (mm) | H552 x W790 x D524 |
| Heating Capacity (Cubic meters) | 433 |
| Nom to Max Output Range (kW) | 8,4 – 14,3 |
| Nominal Efficiency (%) | 81 |
| Nominal Fuel Consumption (kg/h) | 2 |
| Convection Type | Natural – Optional Fan Kit |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 158 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Brand |
C&A Chama |
| Clean Glass Airflow |
Yes |
| Convection Type |
Natural |
| Finish |
Steel |
| Flue Diameter (mm) |
180 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
81 |
| Nominal Output (Kw) |
8.4 |
| Kw Output |
8.4-14.3 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
790 X 524 X 552 |
| Weight (Kg) |
158 |
| Modular options |
Firebox Only, With 4 Feet Base, With Extended Bench, With Pedestal, With Wall Suspension Kit, With Wood Log Holder |
| Fuel |
Wood Burning |
| Optional Accessories |
Ventilation Kit |
DATA SHEET:
To download the Calore C&A Chama Modular Cristal 78 D Wood Fireplace Data Sheet click here.
