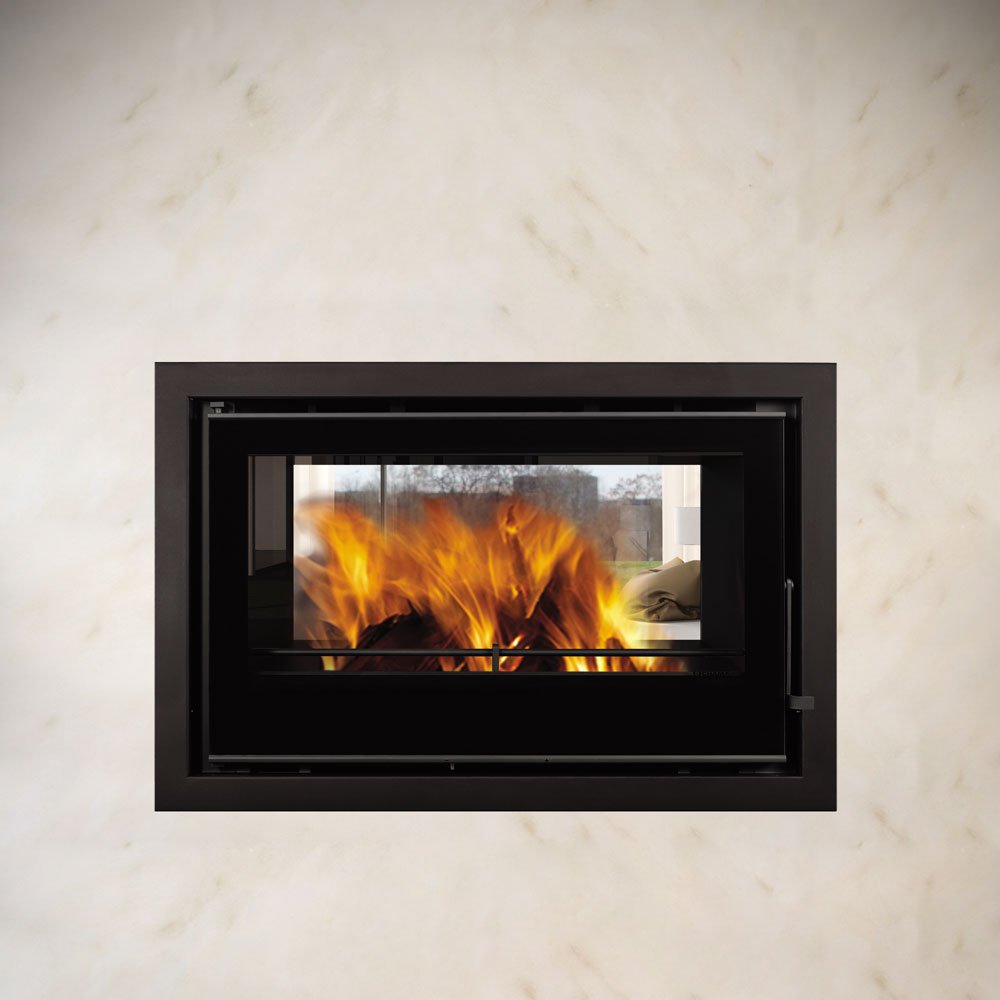

Calore C&A Chama Cristal 98 D Insert Wood Fireplace
Calore C&A Chama Cristal 98 D Insert Wood Fireplace
Description
Description
The C&A Chama Cristal 98 D is the perfect choice for anyone looking for a traditional, yet modern double sided insert wood fireplace. It comes with an ash tray, and the glass airflow system ensures that the glass stays clean. The natural convection type provides a cosy, warm atmosphere in any room. It also has a nominal output of 9.4 kW, with a range of 9.4-15.5 kW output. The nominal efficiency rating is 78%. The facia can be completed with a selection of frames – 51mm steel, 81mm steel or 100mm glass frame options.
| Firebox Material | Steel |
| Internal Firebox Material | Steel & vermiculite |
| Dimensions (mm) | H552 x W980 x D520 |
| Heating Capacity (Cubic meters) | 470 |
| Nom to Max Output Range (kW) | 9,4 – 15,5 |
| Nominal Efficiency (%) | 75 |
| Nominal Fuel Consumption (kg/h) | 2.5 |
| Convection Type | Natural – Optional Forced |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 184 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Brand |
C&A Chama |
| Clean Glass Airflow |
Yes |
| Convection Type |
Natural |
| Finish |
Steel |
| Flue Diameter (mm) |
200 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
78 |
| Nominal Output (Kw) |
9.4 |
| Kw Output |
9.4-15.5 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
990 x 520 x 552 |
| Weight (Kg) |
95 |
| Fuel |
Wood Burning |
| Modular options |
100mm Glass Frame, 51mm Frame, 81mm Frame, No Frame |
| Optional Accessories |
Ventilation Kit |
DATA SHEET:
To download the Calore C&A Chama Cristal 98 D Insert Wood Fireplace Data Sheet click here.
