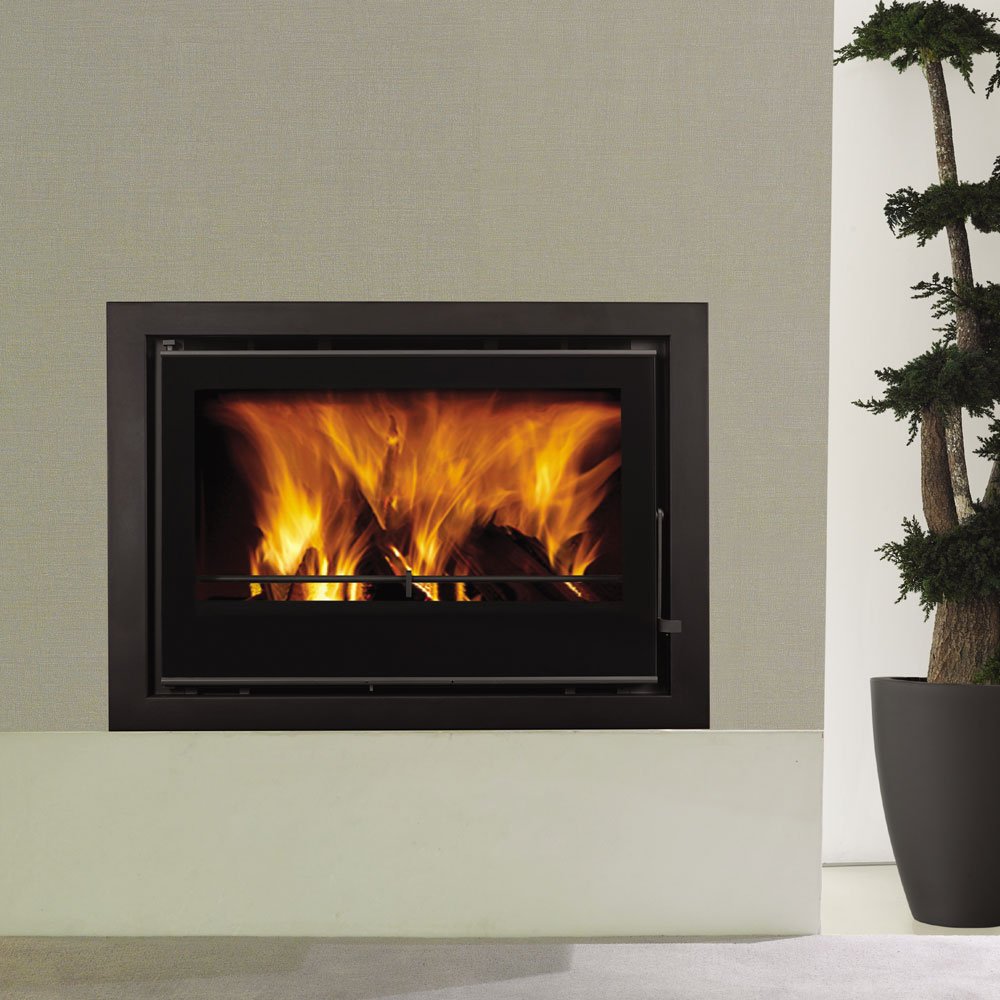

Calore C&A Chama Cristal 78 Insert Wood Fireplace
Calore C&A Chama Cristal 78 Insert Wood Fireplace
Description
Description
The C&A Chama Cristal 78 Insert Wood Fireplace is an ideal choice for those looking to upgrade their home heating system. This insert fireplace comes with an ashtray and air controls allowing you to control the airflow enhancing the efficiency of the fireplace. The fireplace can be installed with an optional fan ensuring even distribution of heat throughout the room. It has a nominal efficiency of 81% and a max heat output of 14.3kW.
Also available in a double-sided version.
| Firebox Material | Steel |
| Internal Firebox Material | Steel & vermiculite |
| Dimensions (mm) | H552 x W790 x D524 |
| Heating Capacity (Cubic meters) | 433 |
| Nom to Max Output Range (kW) | 8,4 – 14,3 |
| Nominal Efficiency (%) | 81 |
| Nominal Fuel Consumption (kg/h) | 2 |
| Convection Type | Natural – Optional Fan Kit |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 138 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Brand |
C&A Chama |
| Clean Glass Airflow |
Yes |
| Convection Type |
Natural |
| Finish |
Steel |
| Flue Diameter (mm) |
180 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
81 |
| Nominal Output (Kw) |
8.4 |
| Kw Output |
8.4-14.3 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
780 x 477 x 548 |
| Weight (Kg) |
131 |
| Fuel |
Wood Burning |
| Modular options |
100mm Glass Frame, 51mm Frame, 81mm Frame, No Frame |
| Optional Accessories |
Ventilation Kit |
DATA SHEET:
To download the Calore C&A Chama Cristal 78 Insert Wood Fireplace Data Sheet click here.
