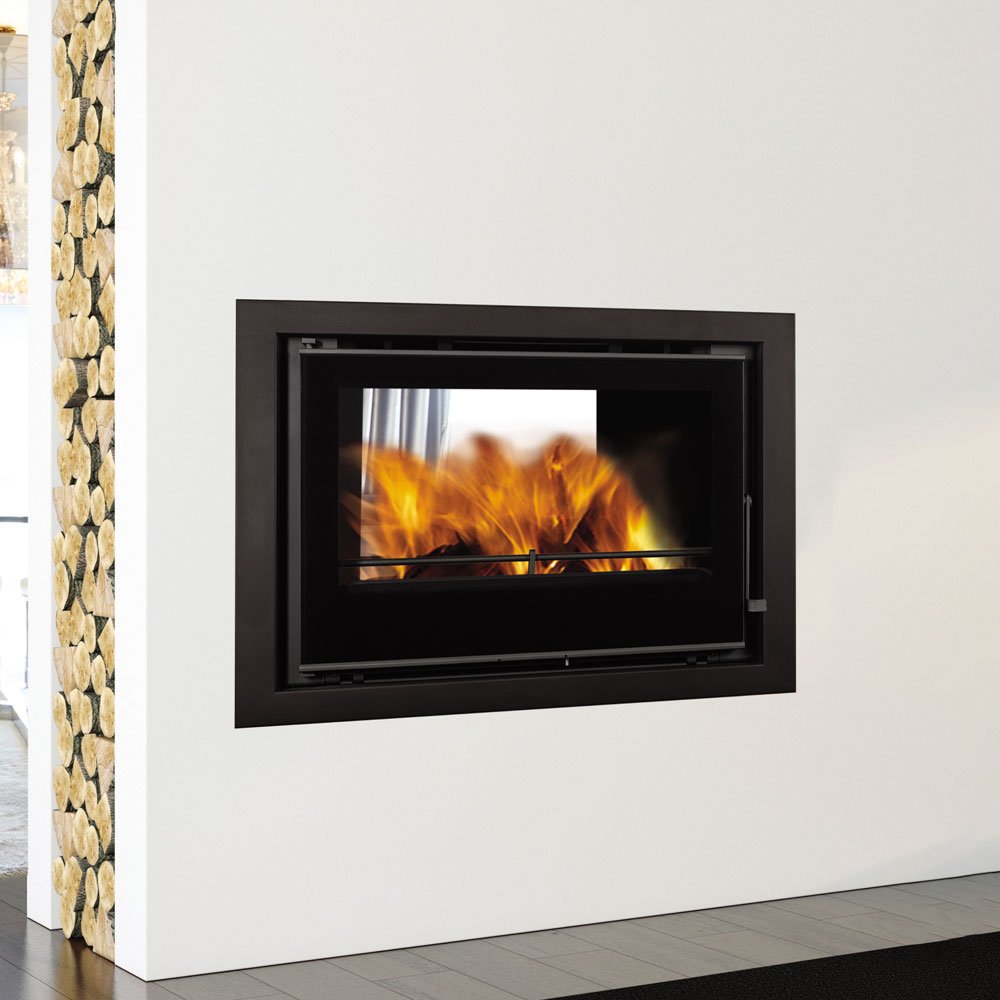

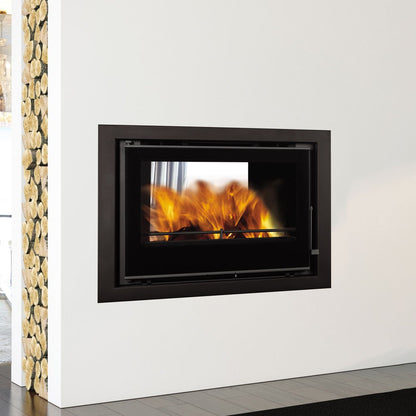

Calore C&A Chama Cristal 78 D Insert Wood Fireplace
Calore C&A Chama Cristal 78 D Insert Wood Fireplace
Description
Description
When it comes to double sided quality insert wood fireplaces, look no further than the C&A Chama Cristal 78 D, the perfect solution for upgrading an open fireplace, providing both warmth and a sleek, modern aesthetic. Its natural or forced ventilation heating system ensures even heat distribution, while its steel finish adds a touch of elegance to any room. The fireplace has a nominal efficiency of 81%, nominal output of 8.4 kW, and can output between 8.4 and 14.3 kW. Vermiculite interior and ashtray are standard. The facia can be completed with a selectin of frames – 51mm steel, 81mm steel or 100mm glass frame options.
| Firebox Material | Steel |
| Internal Firebox Material | Steel & vermiculite |
| Dimensions (mm) | H552 x W790 x D485 |
| Heating Capacity (Cubic meters) | 433 |
| Nom to Max Output Range (kW) | 8,4 – 14,3 |
| Nominal Efficiency (%) | 81 |
| Nominal Fuel Consumption (kg/h) | 2 |
| Convection Type | Natural – Optional Fan Kit |
| Distance from flammable materials (mm) | 1000 |
| Product Weight (kg) | 138 |
| Warranty – Structural | 5 Years |
| Warranty – Electrical/Mechanical | 2 Years |
Price excludes installation, flues and consumables.
| Ash Tray |
Yes |
|---|---|
| Brand |
C&A Chama |
| Clean Glass Airflow |
Yes |
| Convection Type |
Natural |
| Finish |
Steel |
| Flue Diameter (mm) |
180 |
| Flue Exit |
Top |
| Nominal Efficiency (%) |
81 |
| Nominal Output (Kw) |
8.4 |
| Kw Output |
8.4-14.3 |
| Smart Class |
Traditional Wood Fireplaces |
| Unit Dimensions (WxDxH) |
780 x 520 x 548 |
| Weight (Kg) |
185 |
| Fuel |
Wood Burning |
| Modular options |
100mm Glass Frame, 51mm Frame, 81mm Frame, No Base |
| Optional Accessories |
Ventilation Kit |
DATA SHEET:
To download the Calore C&A Chama Cristal 78 D Insert Wood Fireplace Data Sheet click here.
