This indoor flueless gas fireplace heats up areas of up to 72m² or 233m³, making it perfect for creating a cozy ambiance in your living room, dining room, or indoor entertainment area.

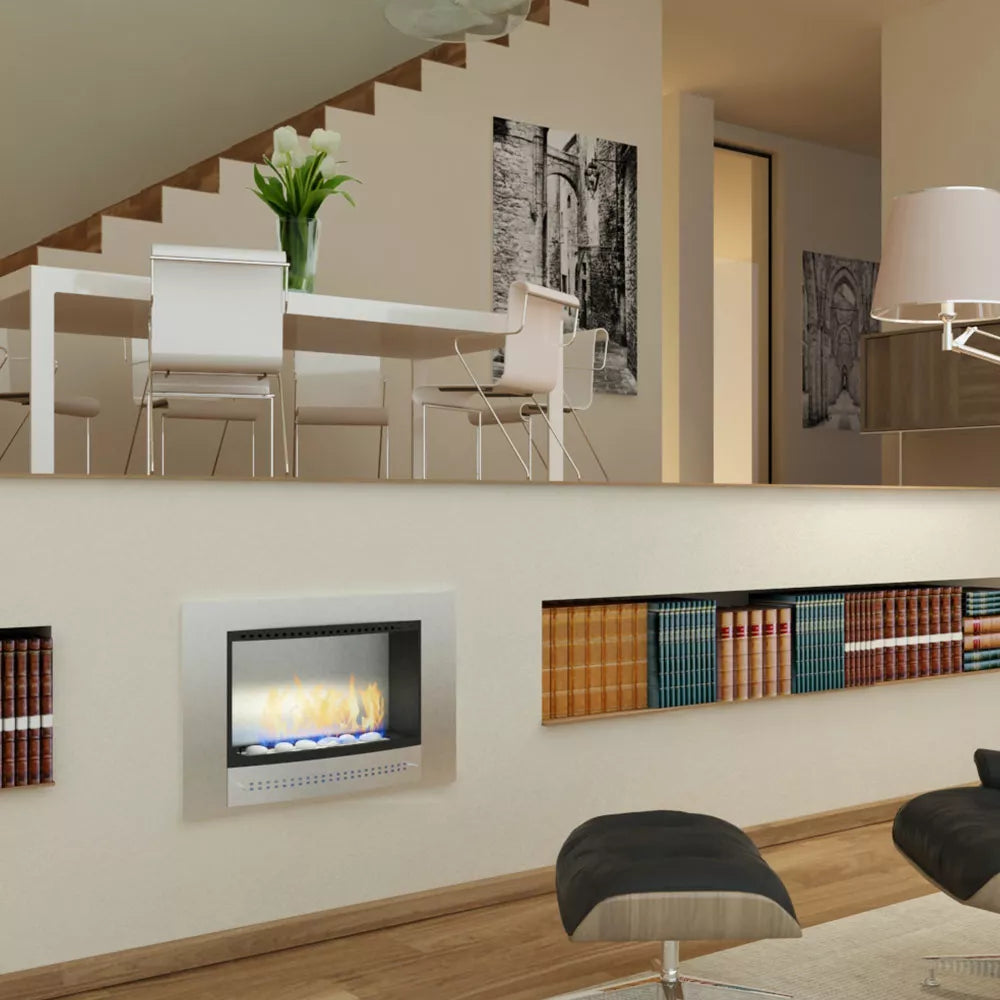

Upgrade your home’s ambiance and warmth with the Chad-O-Chef Picture Fireplace. This timeless gas fireplace adds a touch of sophistication to medium-sized spaces (up to 72m² or 233m³) and breathes new life into outdated heating solutions.
An easy Installation allows you to either hang the fireplace on the wall or recess it to sit flush with the wall.
Different finishing options available for this fireplace:
-

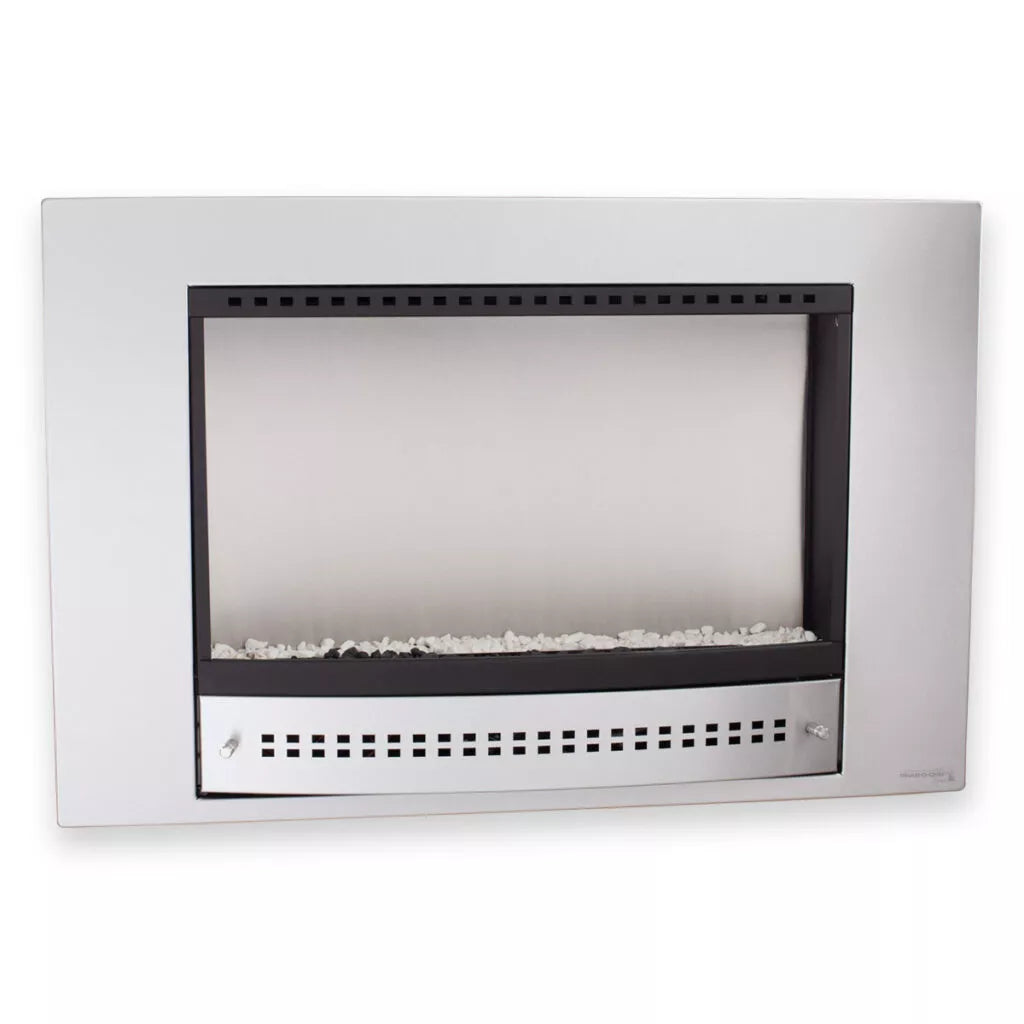

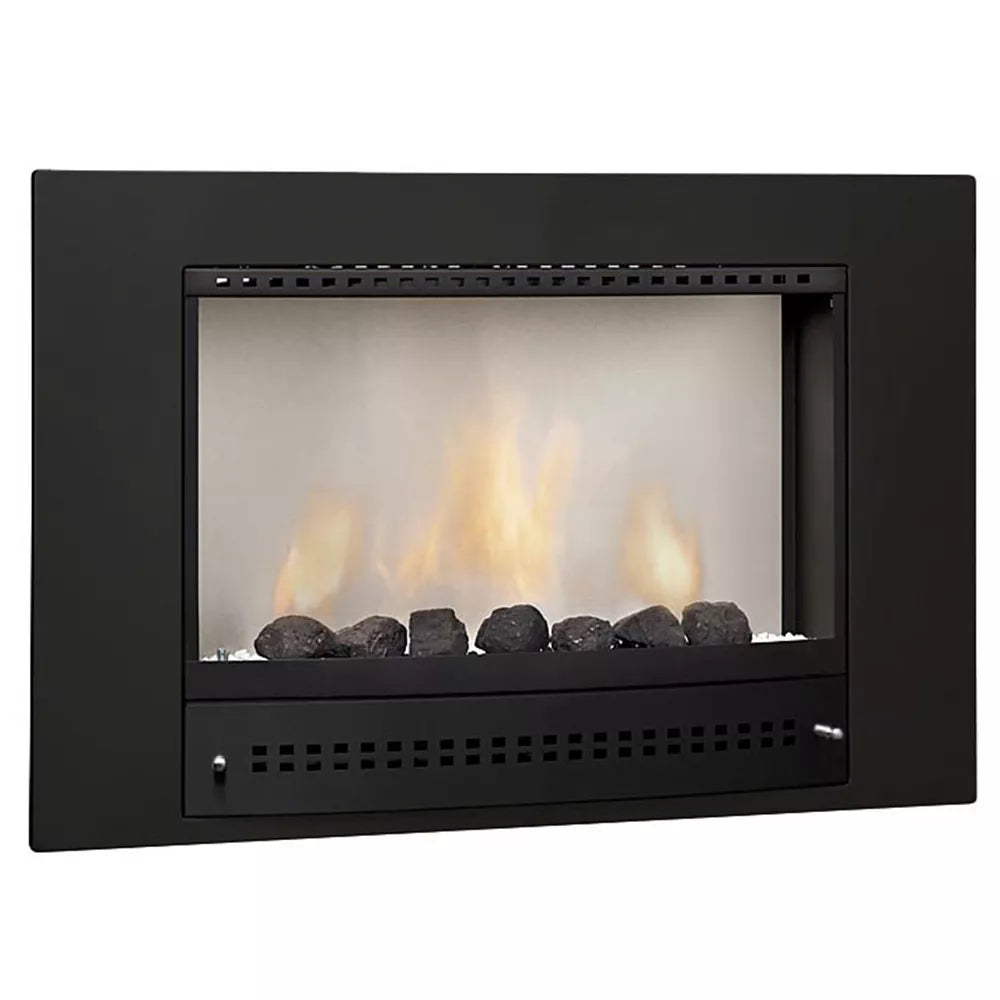

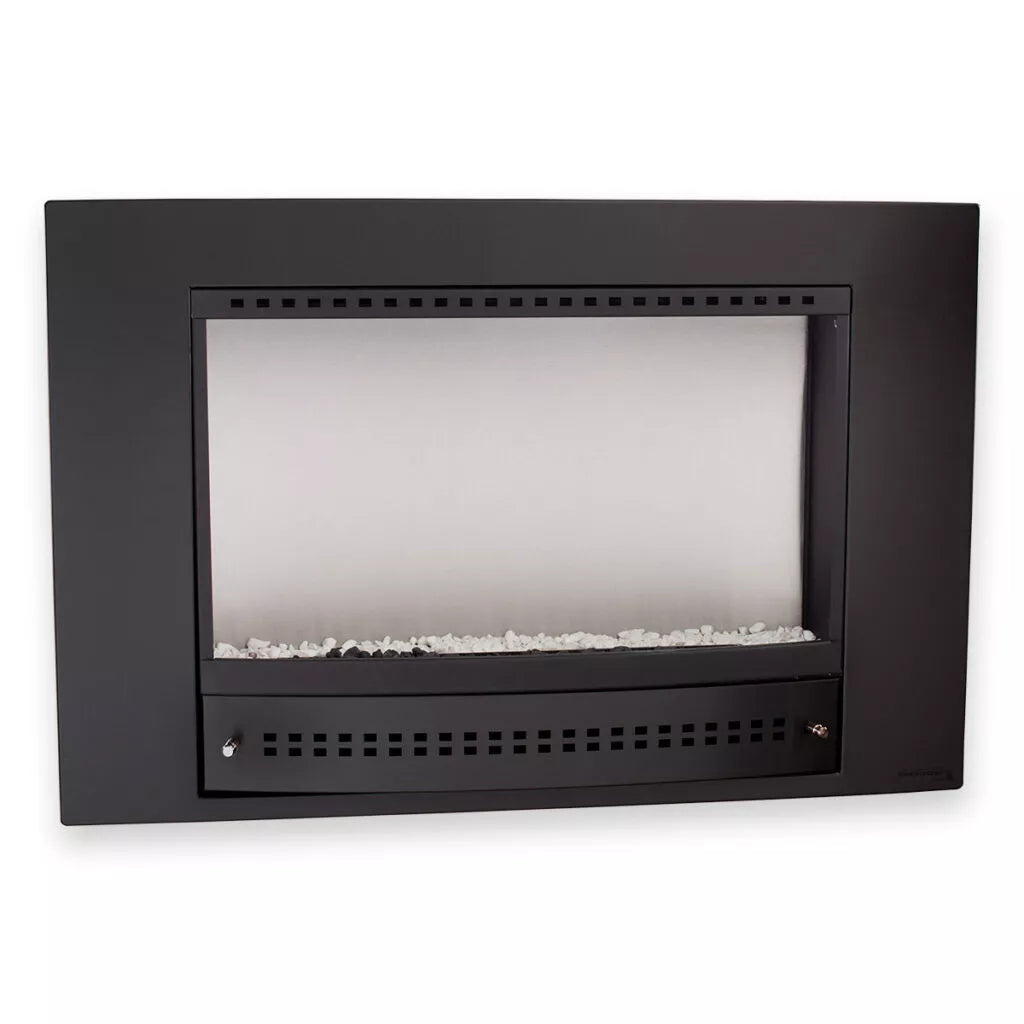

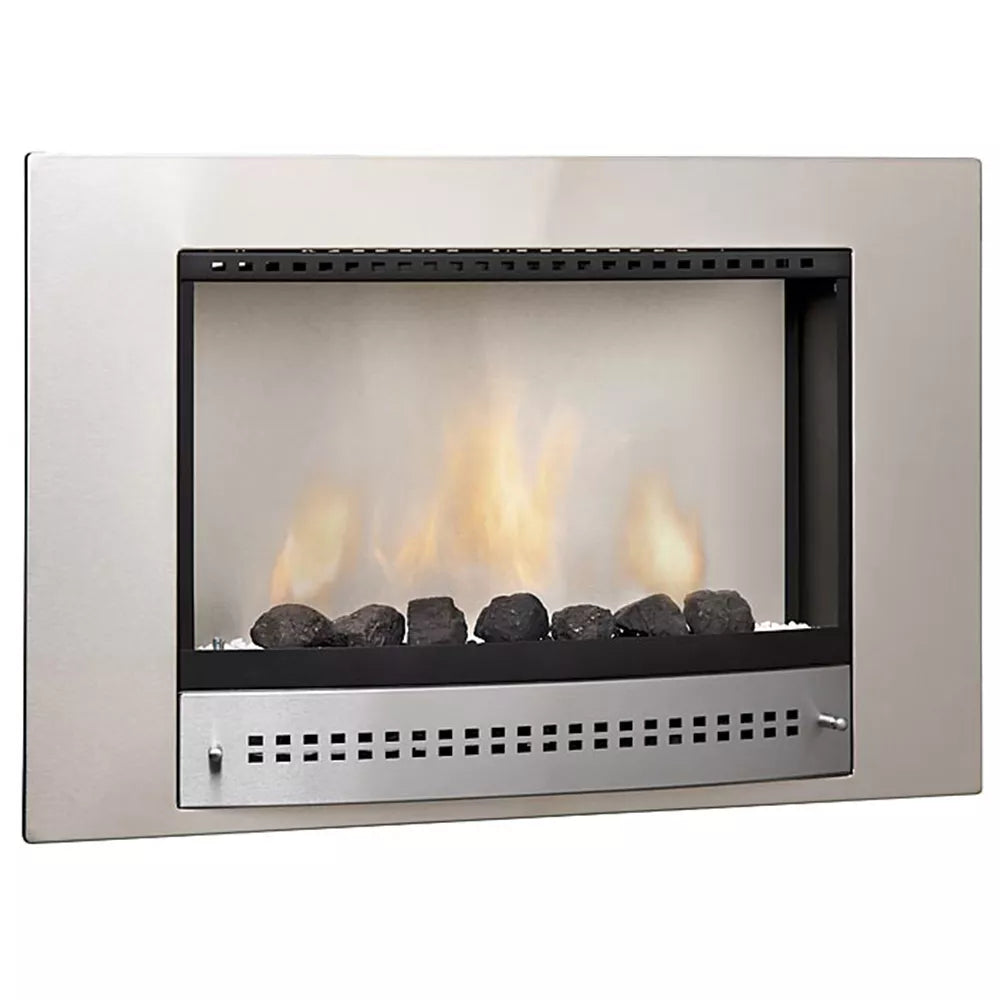

Frame: Choose between the standard brushed stainless-steel frame or make a statement with a bold black frame.
-

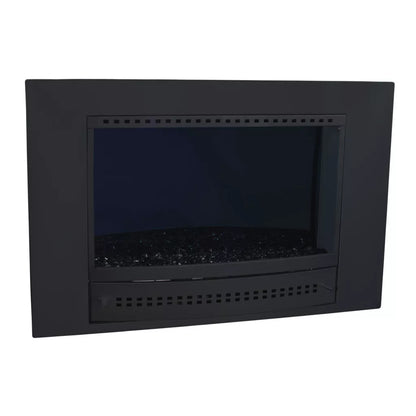

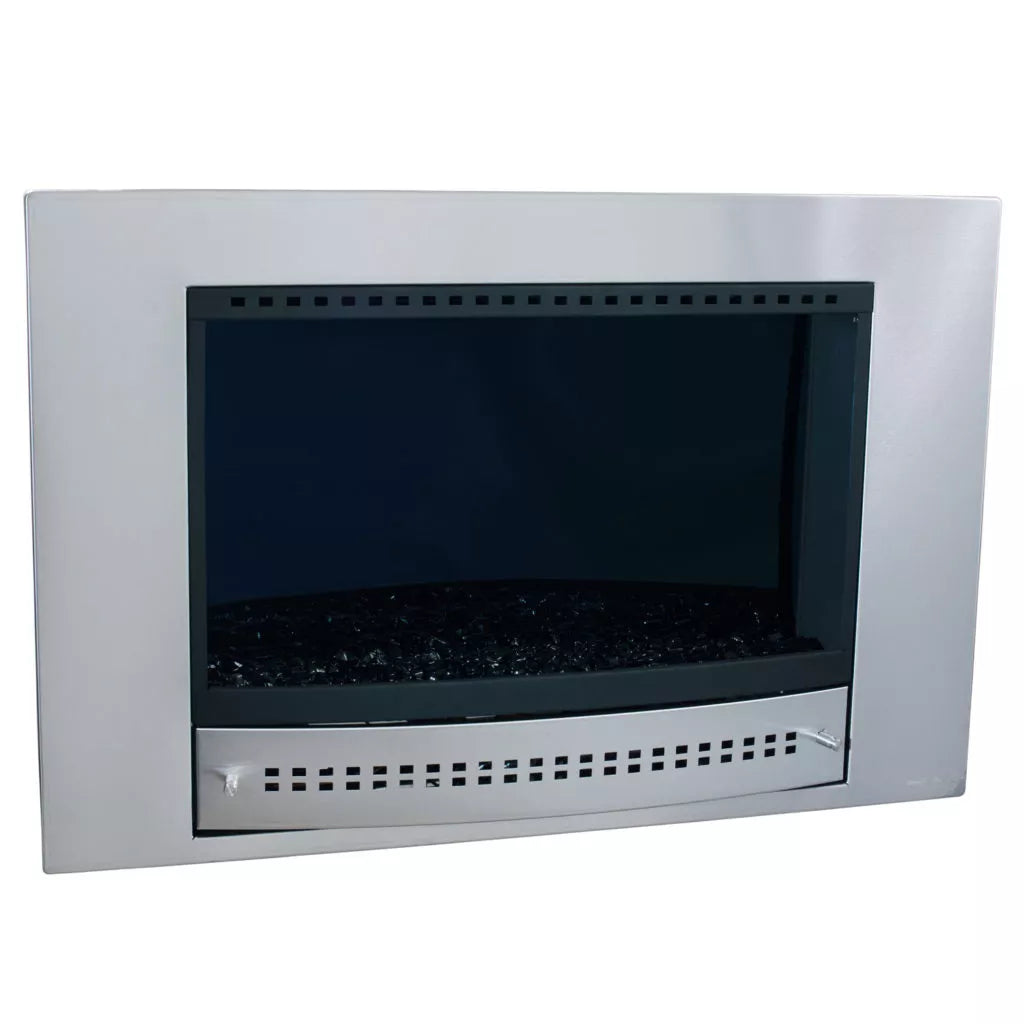

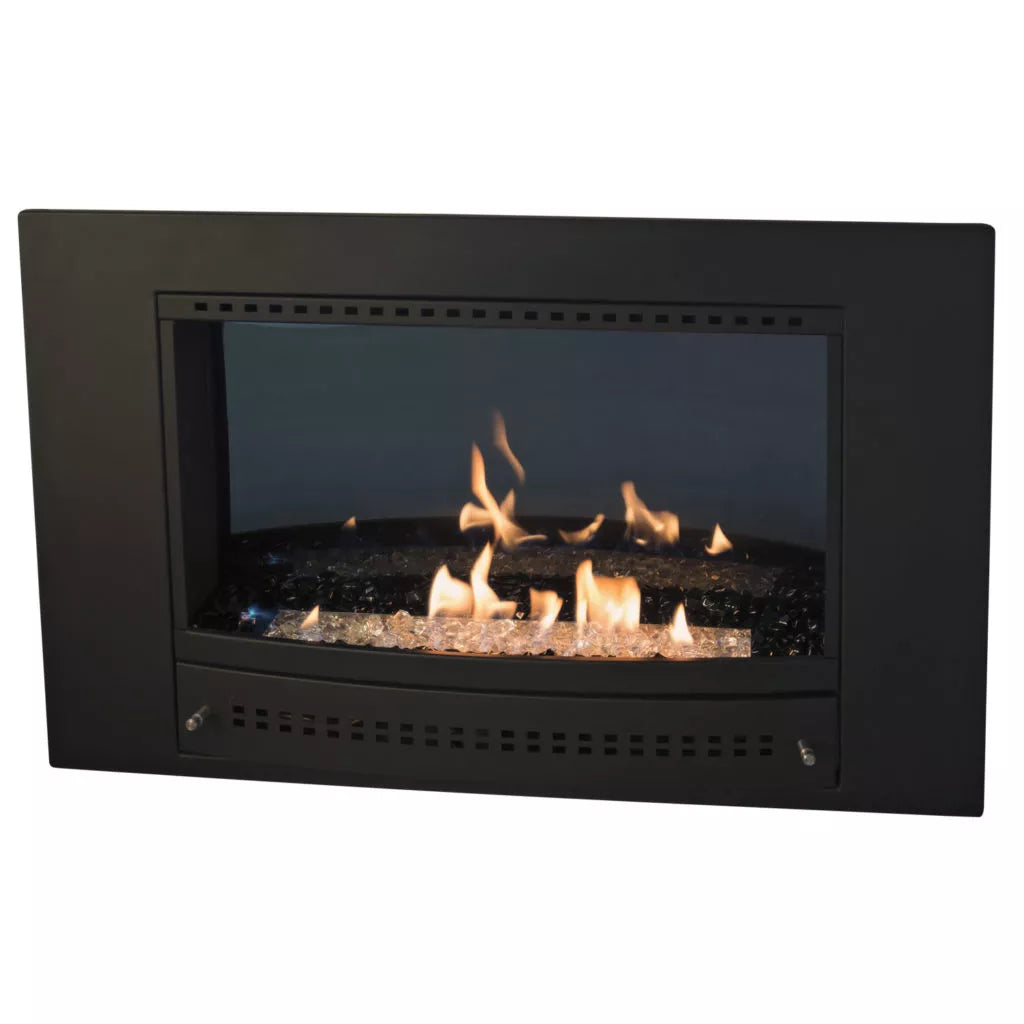

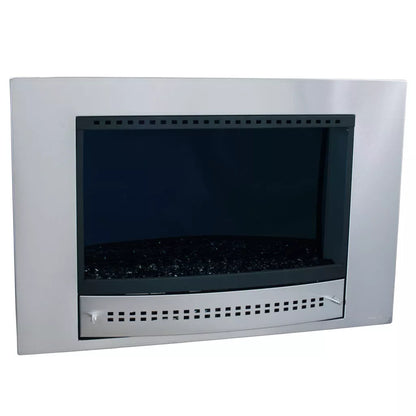

Backing: Select the timeless stainless-steel backing for a classic touch or opt for the dramatic black mirror backing to create a dazzling focal point in your home.
-

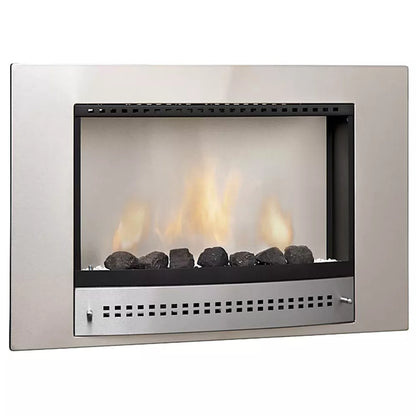

Decorative Stones: Standard stone options include black ash in the burner, with a white stone surround. Large black coals and fire glass are also available as alternatives.
Key features of the Chad-O-Chef Picture Fireplace:
- Sleek and space-saving
- Easy to install – no need for extensive building work or chimneys.
- Heats indoor areas of up to 72m² or 233m³ (5.7 kW/h).
- Conservative Gas Consumption (when operating on max) is 0.42 kg/h.
- The minimum room size (without permanent ventilation) should not be less than 105m³.
- Made of high-quality stainless steel with heat-resistant coatings.
- Safety Guaranteed with ODS Safety System
-
2-Year quality guarantee.
- Low maintenance and easy to use.
- Requires a registered gas installer for installation.
- Ignites with a Piezo Spark
- Manufactured in a world-class factory, with ISO9001
Installation Instructions

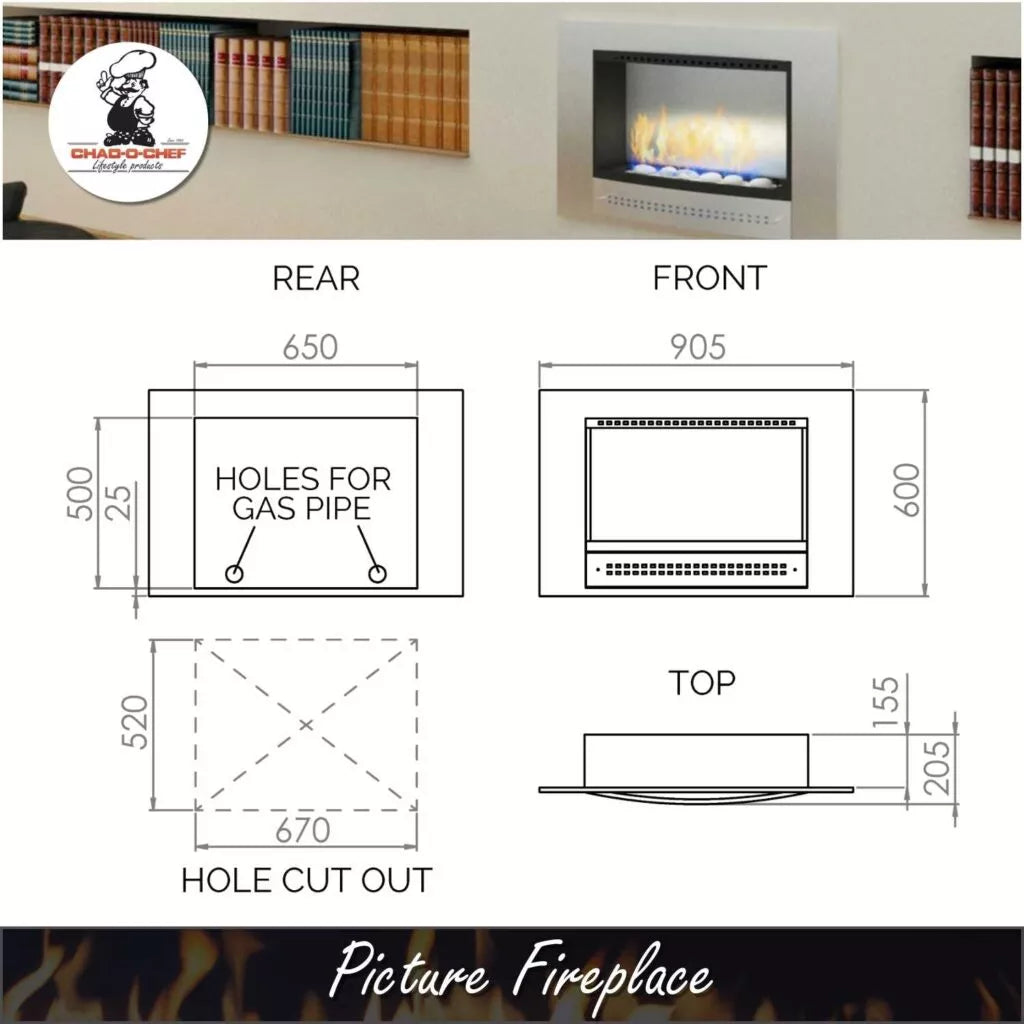

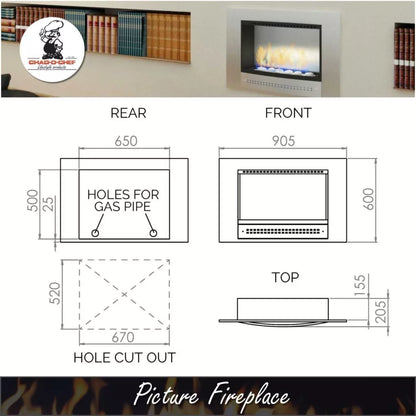

The Picture Fireplace is best installed into a 160-200mm deep aperture in a wall, in a single-sided orientation. The hole can also be in a box, built off of an existing wall.
There are two holes positioned in the back of the fireplace for a gas pipe to be led into the fireplace. The shallow depth of the Picture Fireplace means it is easily added to existing homes without taking up too much space in a pre-existing wall.
Note:
– Rooms smaller than the ‘Min. Room size’ require suitable permanent ventilation.
– ‘Max. Room sizes’ are recommended and may vary according to factors such as home insulation, materials, climate, and so forth.
What’s in the box?
- Fireplace
- Burner
- Decorative Stones
- Instruction Manual

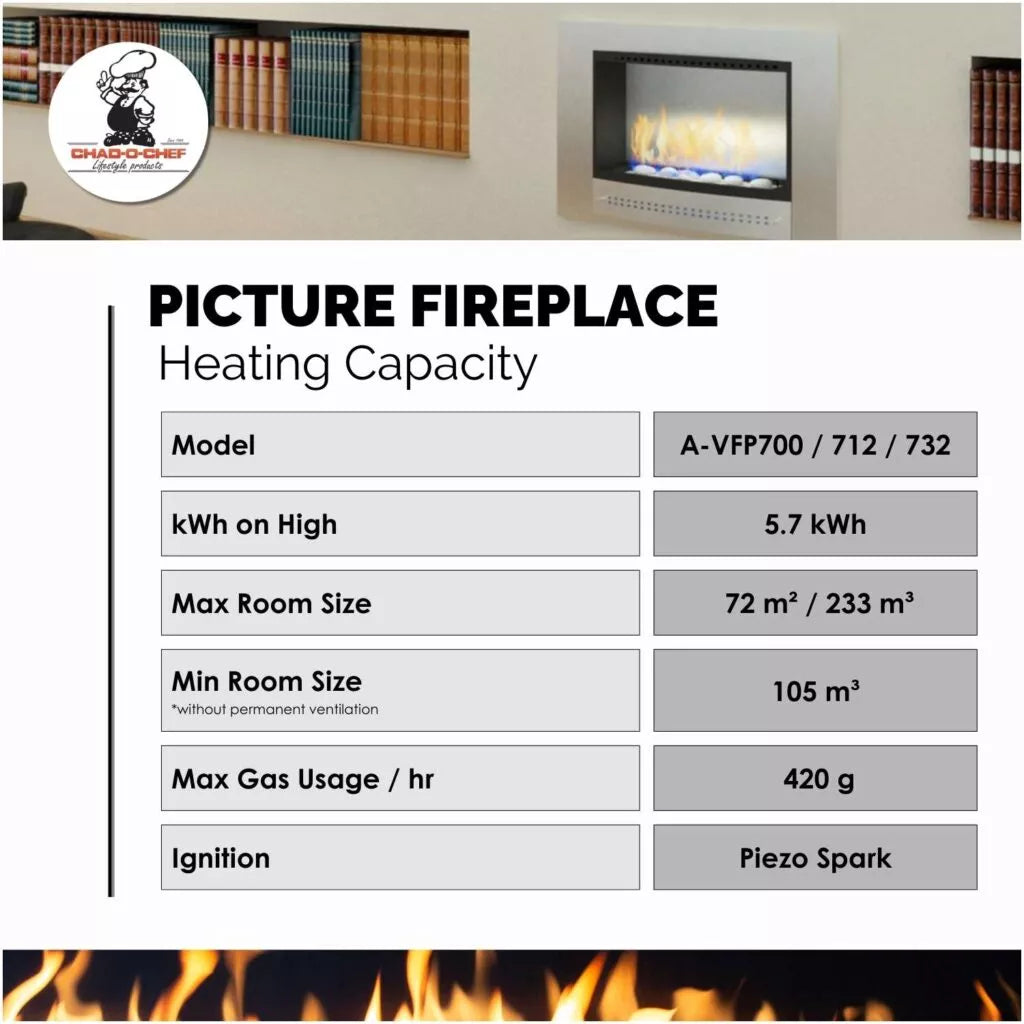

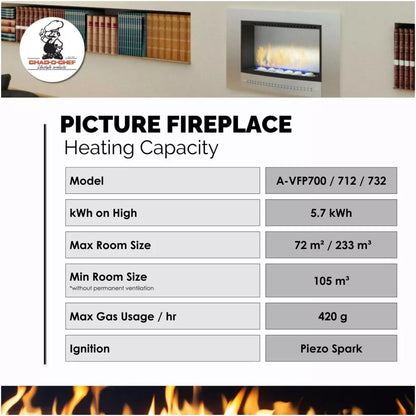

ADDITIONAL INFORMATION
| ASSEMBLED SIZE |
905m x 600mm x 205mm |
| GAS TYPE |
LPG, Natural Gas |
| HEATING CAPACITY (MAX) |
5.7kW (233m³ / 72m²) |
| MINIMUM ROOM SIZE (without permanent ventilation) |
105m³ |
| GAS CONSUMPTION (MAX) |
0.4kg/hr |
| IGNITION TYPE |
Piezo Ignitor |
| BURNER FINISHING OPTIONS |
Black Ash (Standard), Black Coals, Glass Stones |
| FASCIA OPTIONS |
Stainless Stell, Black (Matt) |
| BACKING OPTIONS |
Plain Stainless Steel Back, Midnight Mirror Back |
